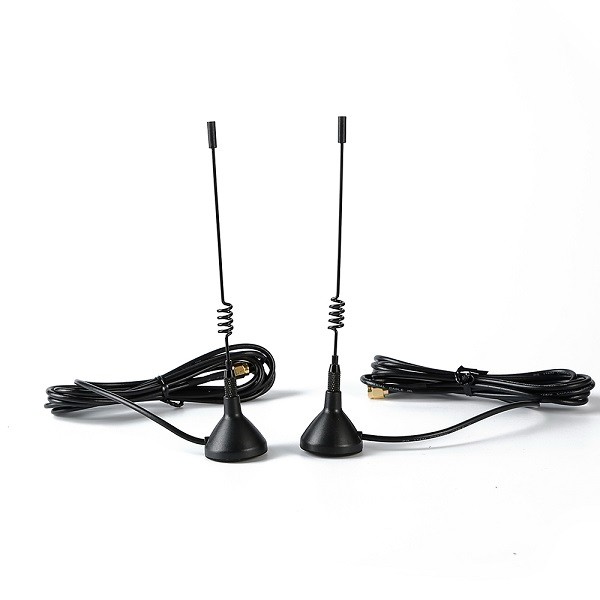

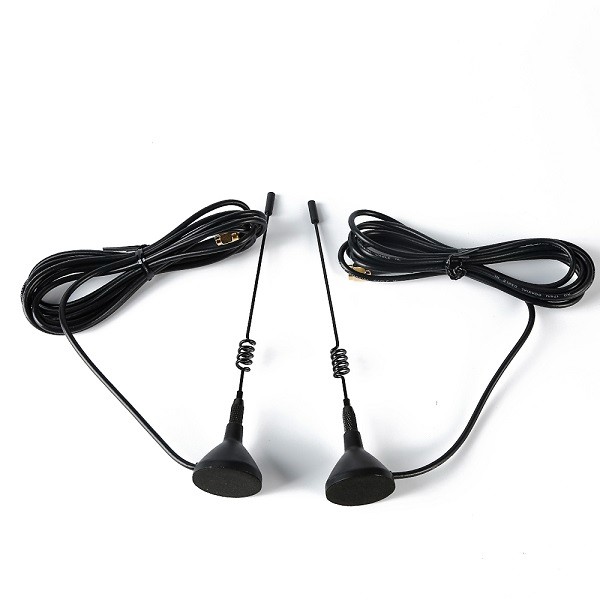

3dBi magnetic base antenna GSM antenna with TNC SMA MMCX connector

3dBi magnetic base antenna GSM antenna with TNC SMA MMCX connector

Specification:

A. Electrical Characteristics
Frequency: 824 ~ 960 MHz&1710 ~ 1990 MHz
S.W.R.: < =2.0
Antenna Gain: 3dBi
Polarization: Linear
Impedance: 50 Ohm
B. Material & Mechanical Characteristics
Material of Radiator: Spring Steel
Material of Plastic Body: ABS
Connector Type: SMA Male
Connector Pull Test: >= 3 Kg
C. Environmental
Operation Temperature: - 40 °C ~ + 65 °C
Storage Temperature: - 40 °C ~ + 80 °C
Antenna Color Storage life: < 2 year

Antenna - S Parameter Test Data

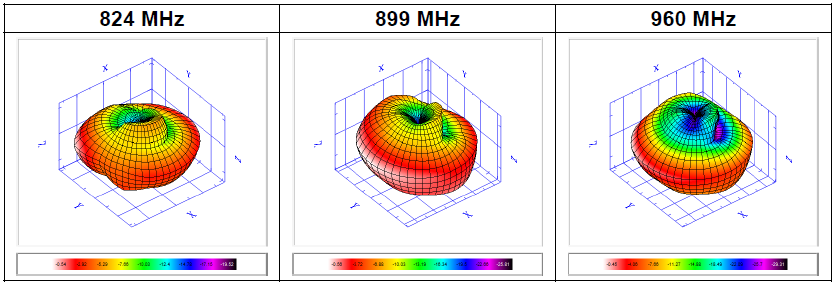

Antenna - Radiation Pattern Test Data

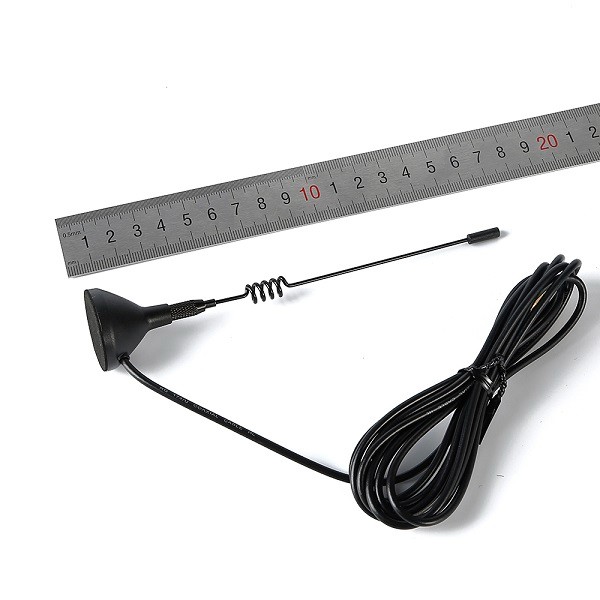

Dimension
