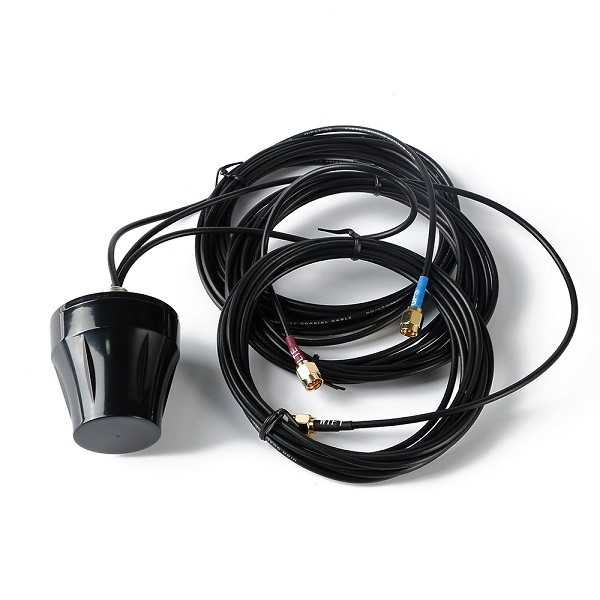

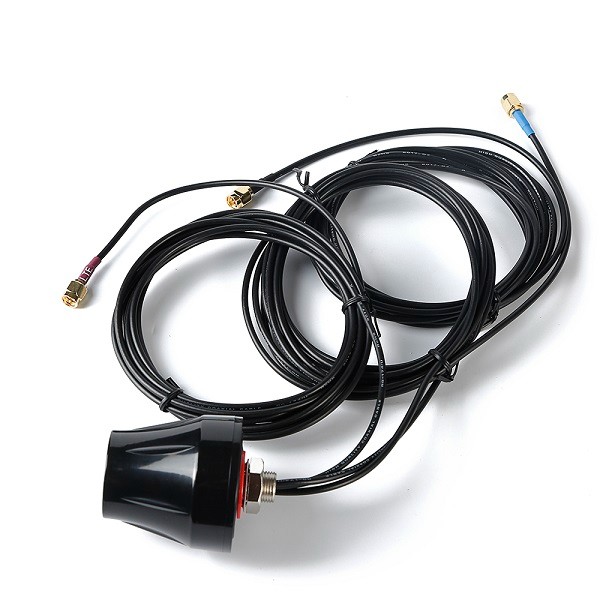

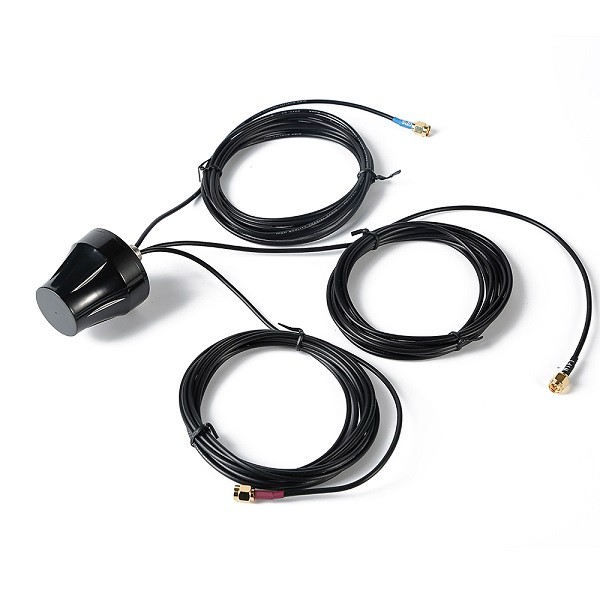

Screw Mount Waterproof GPS 4G WIFI Combo Antenna With Adhesive Type

Screw Mount Waterproof GPS 4G WIFI Combo Antenna With Adhesive Type

Specification:

GPS Antenna
Center Frequency: 1575.42±1MHz
Band Width: CF±5MHz
Polarization: RHCP
LNA Gain: 28dBi
V.S.W.R:＜1.5
Impendance: 50Ω
Axial Ratio: 3dB（max）
Noise Figure:＜1.5
Ex-band Attenuation: 12dB@CF+50MHz/16dB@CF-50MHz
Supply Voltage: 2.2~5V DC
Current Consumption: 5~15mA

LTE Antenna
Frequency Range: 700~960MHz/1710~2700MHz
V.S.W.R:＜2.0
Polarization: Linear
Gain: 2.0dBi
Impendance: 50Ω

WIFI Antenna
Frequency Range: 2400~2500MHz
Polarization: Linear
Gain: 3dBi
V.S.W.R:＜2.0
Impendance: 50Ω

Mechanical
Cable: RG174
Connector: SMA/MCX/FAKRA or others
Material: ABS
Mounting Method: Screw

Environmental
Operating Temperature: -40℃~+85℃
Relative Humidity: Up to 95%
Ingress Protection: IP67 (exclude cable outlet)

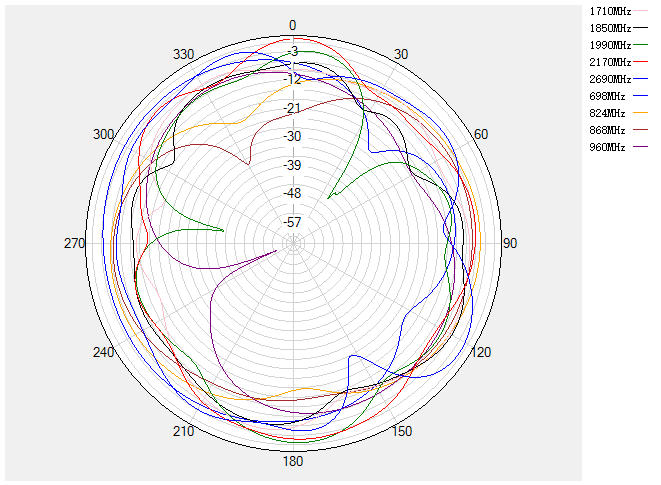

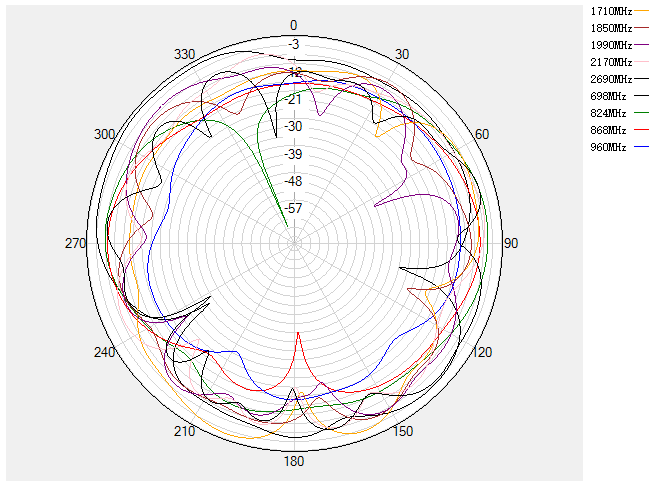

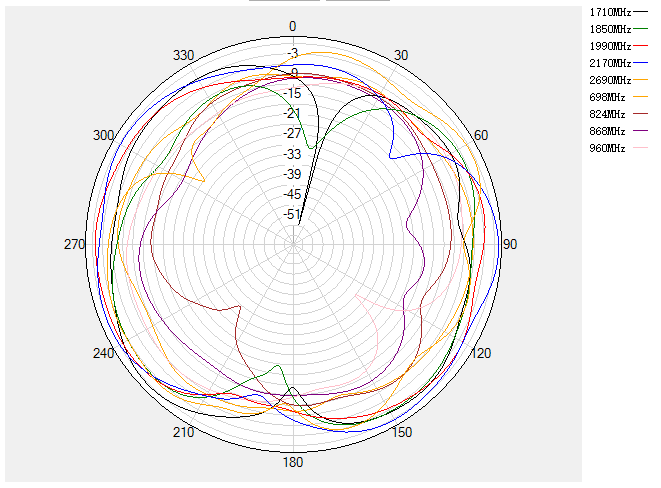

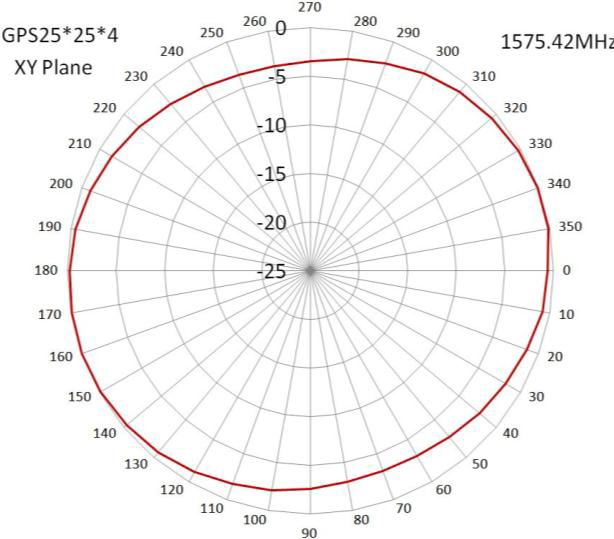

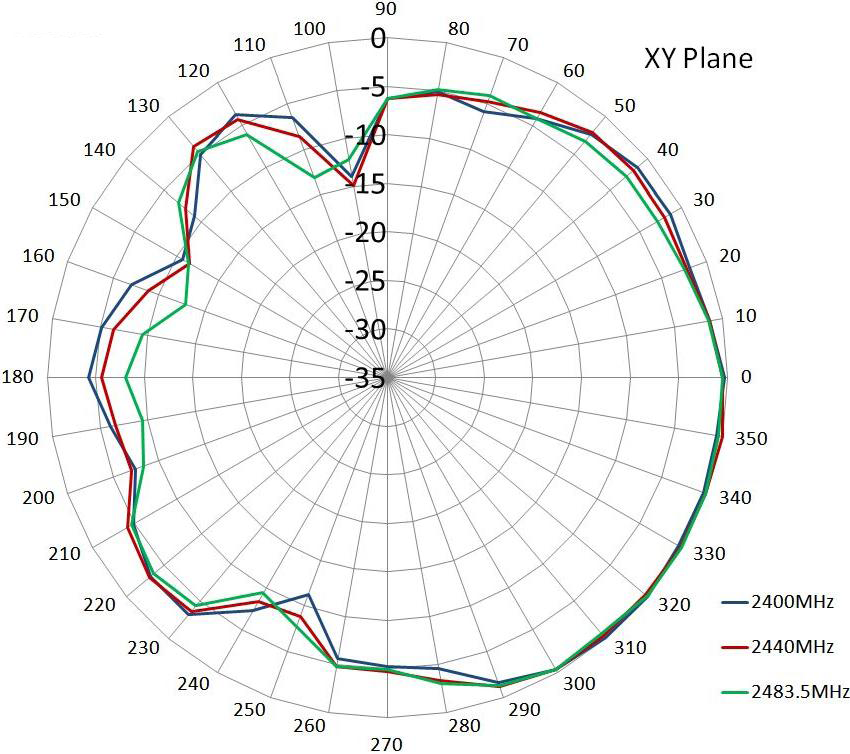

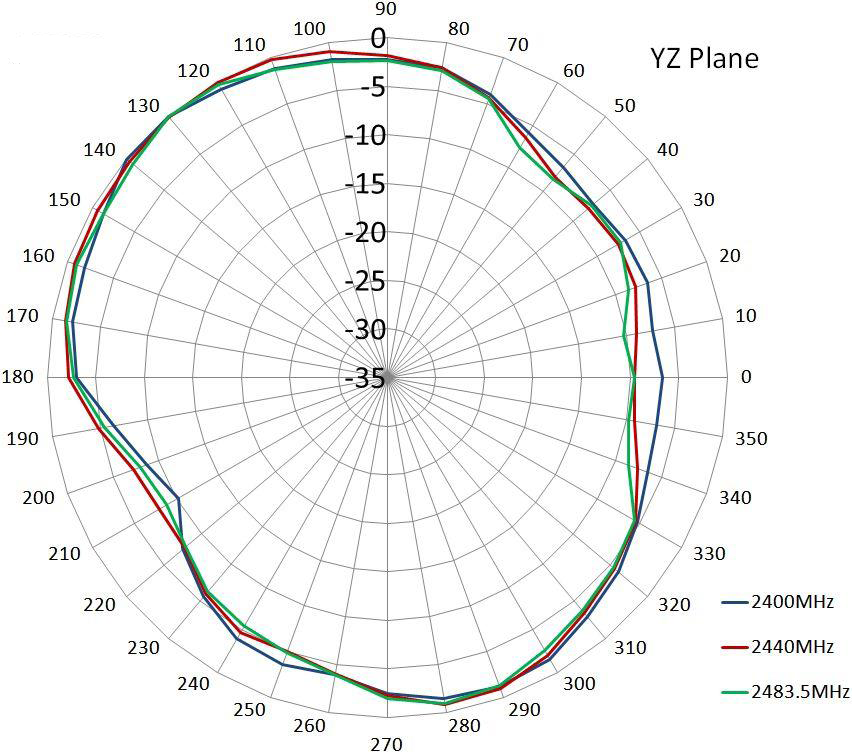

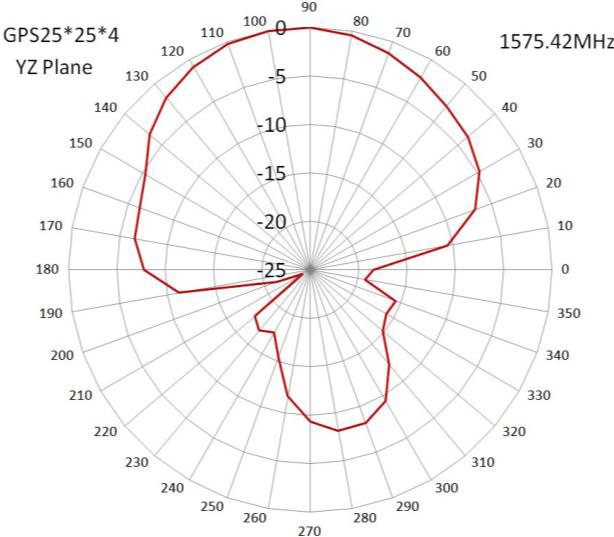

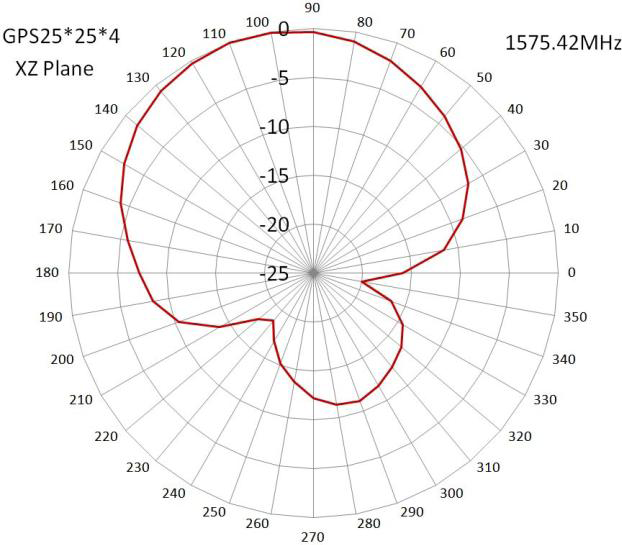

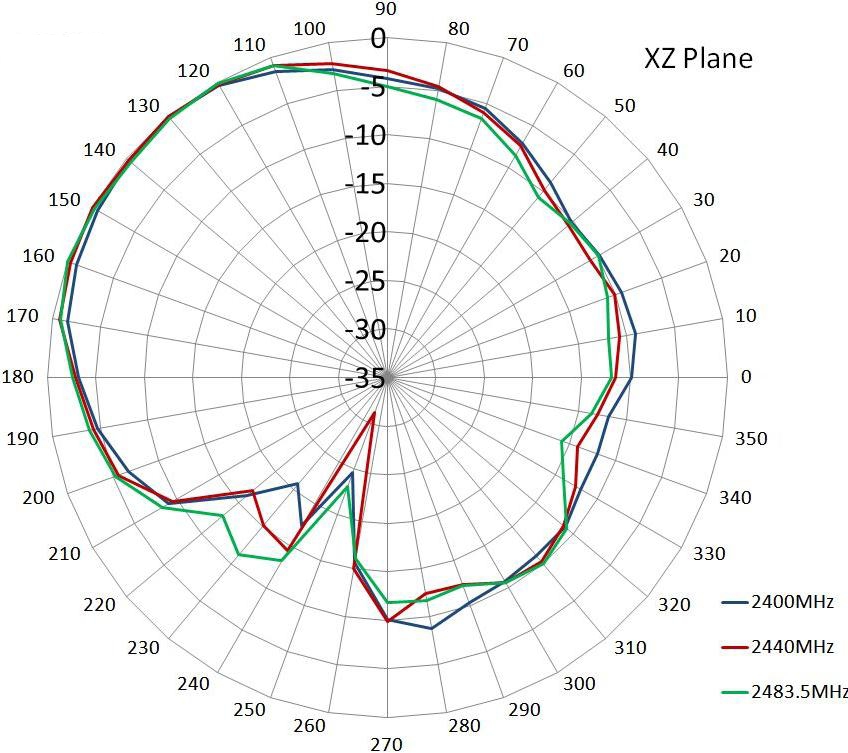

Antenna - Radiation Pattern Test Data

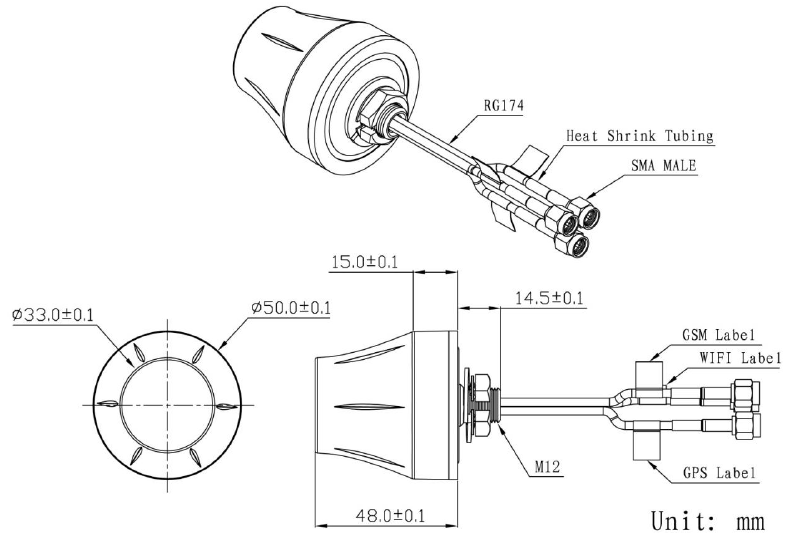

Dimension
