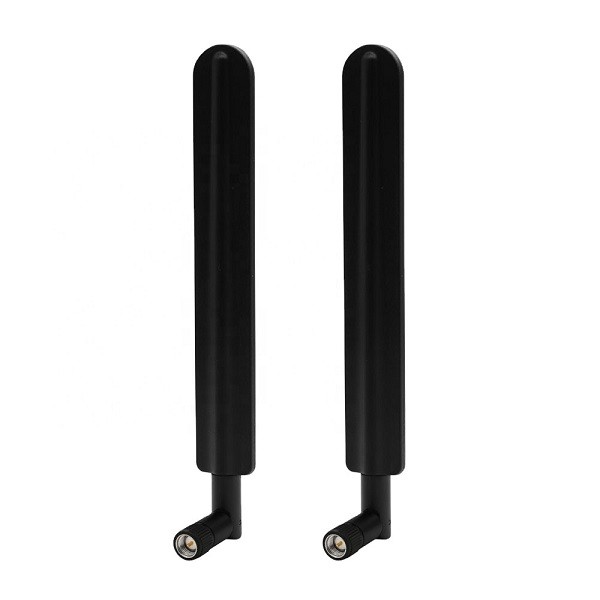

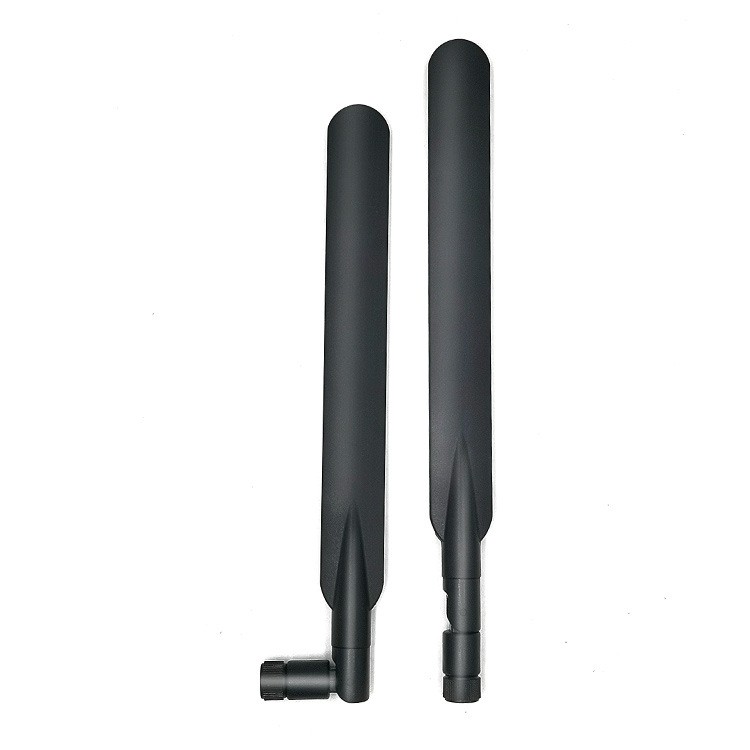

2.4GHz 5.8G WIFI 6E Rubber Duck SMA Antenna WIFI Wireless Dual Band Router Antenna

2.4GHz 5.8G WIFI 6E Rubber Duck SMA Antenna WIFI Wireless Dual Band Router Antenna

SPEC

Electrical Characteristics
. Frequency (MHz) : 2400-2500 & 5150-7125 MHz
. S.W.R. : < 2.0
. Return Loss : < -10 dB
* S.W.R. & Return Loss test at free space *
. Peak Gain : 3.0 ~ 4.0 dBi
. Efficiency : 50 ~ 70 %
* Peak Gain and Efficiency data depended on installation environments*
. Radiation Pattern : Omni-Directional
. Impedance : 50 ohm

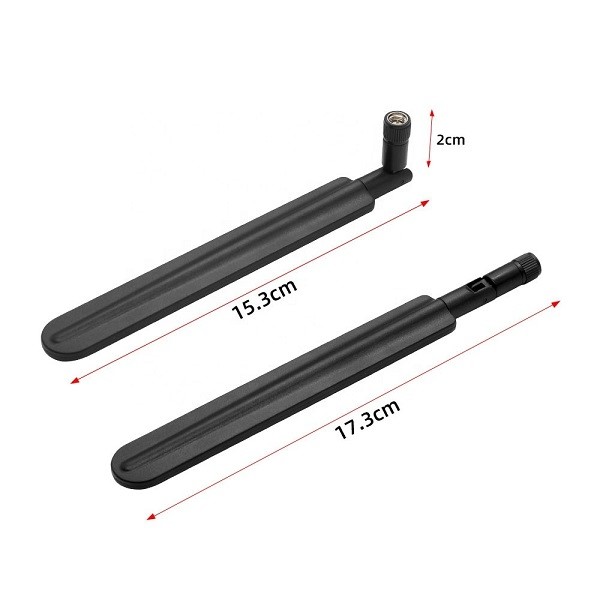

Mechanical Characteristics
. Antenna Material : FR4 / PCB

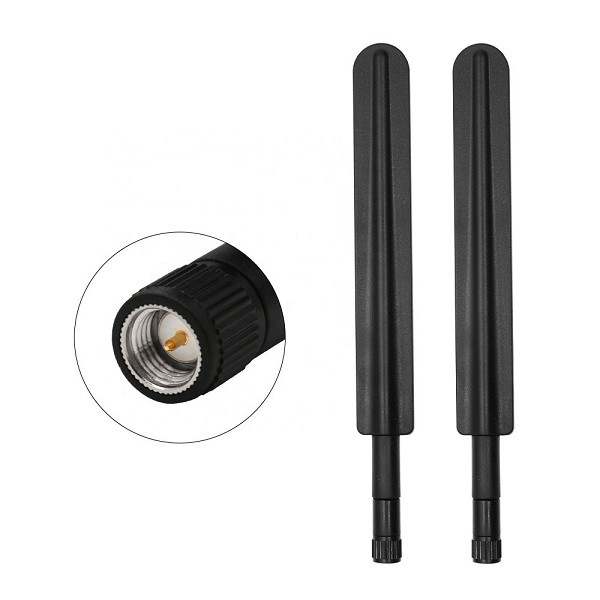

. Connector : SMA Male (Plug)
. Material : RoHS 2011/65/EU with IEC 62321:2008 Method

Environmental Condition
. Operation Temperature : -40 ~ +80 ºC
. Storage Temperature : -40 ~ +80 ºC

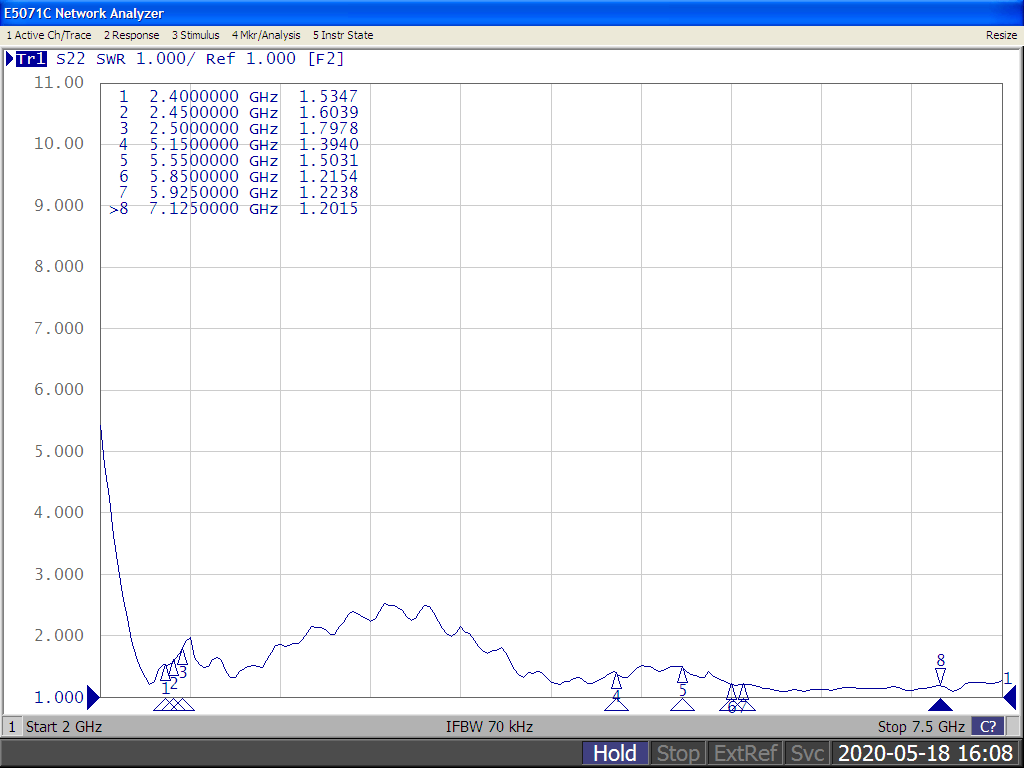

VSWR
