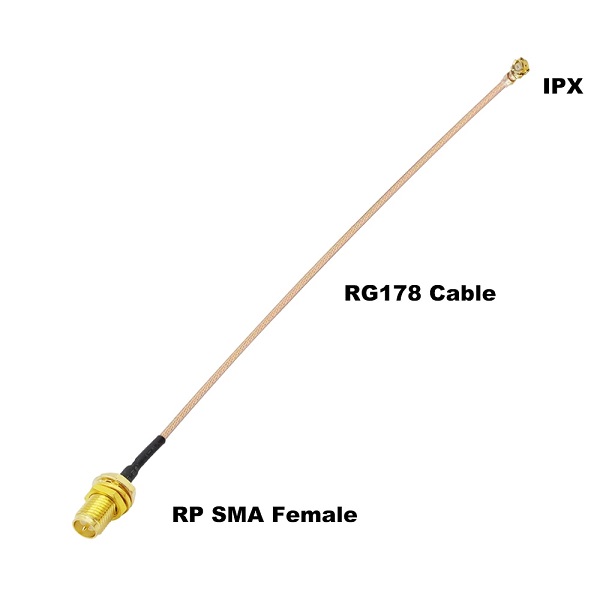

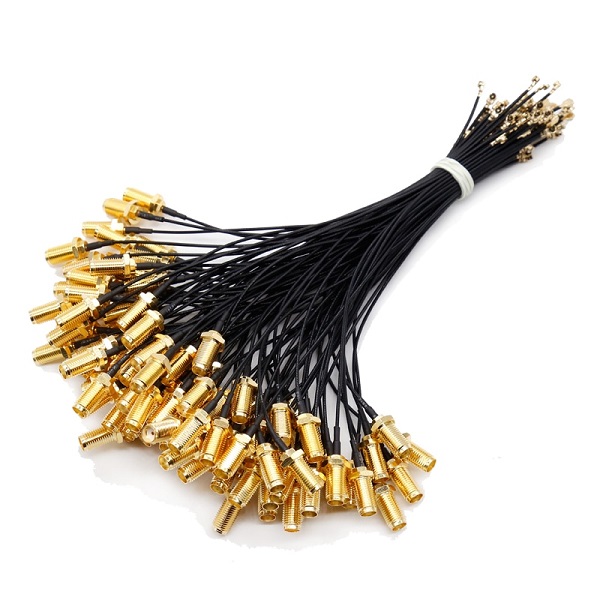

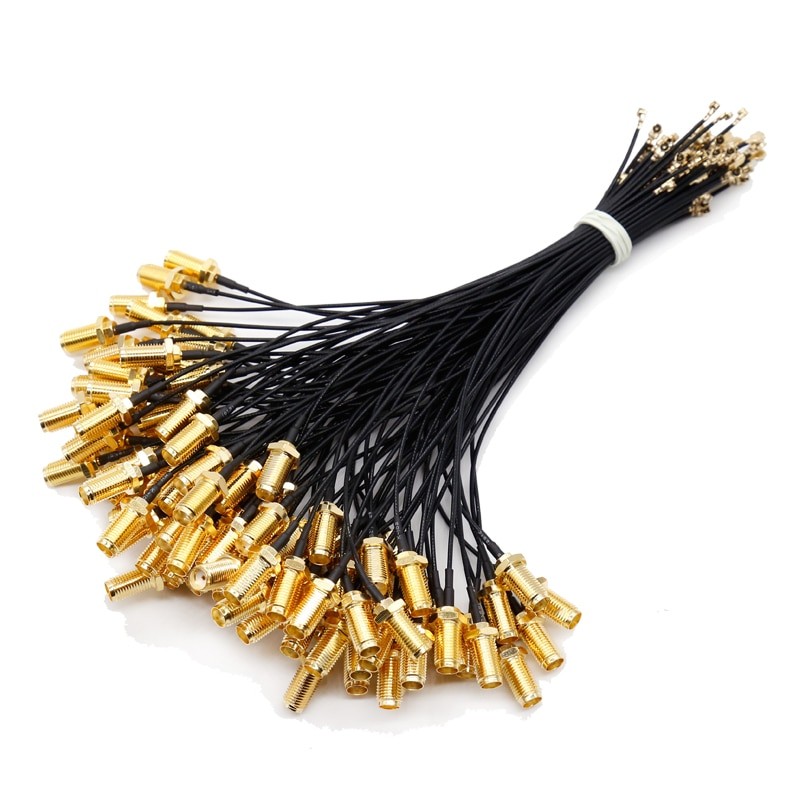

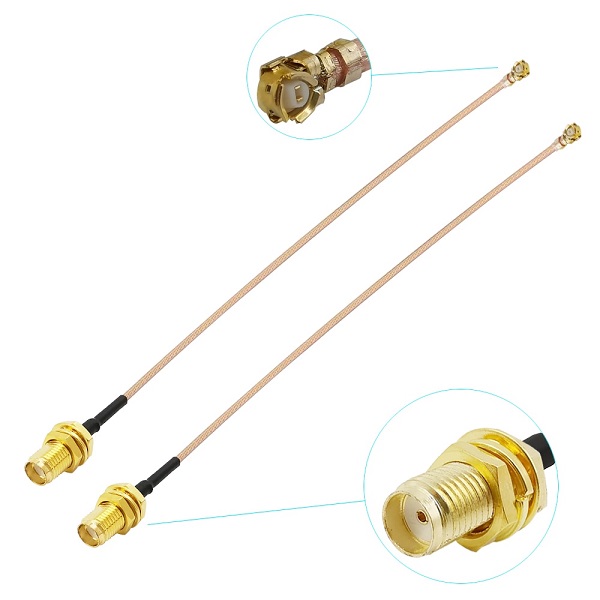

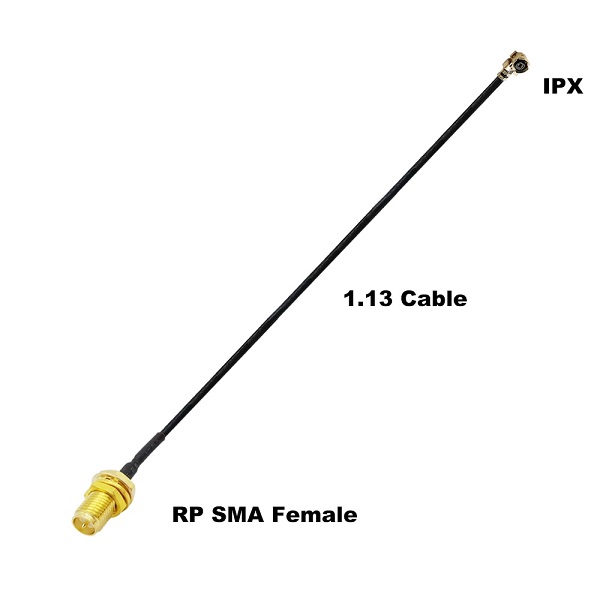

U.FL IPX IPEX UFL To SMA Male Female 1.13mm Pigtail Cable for PCI Wifi Card Wireless Router Extension

  • Product Item : EM-SMA-UFL-01
  • Category: RF Cable Assembly
  • Frequency: 0~12GHz
  • Impedance: 50Ohm

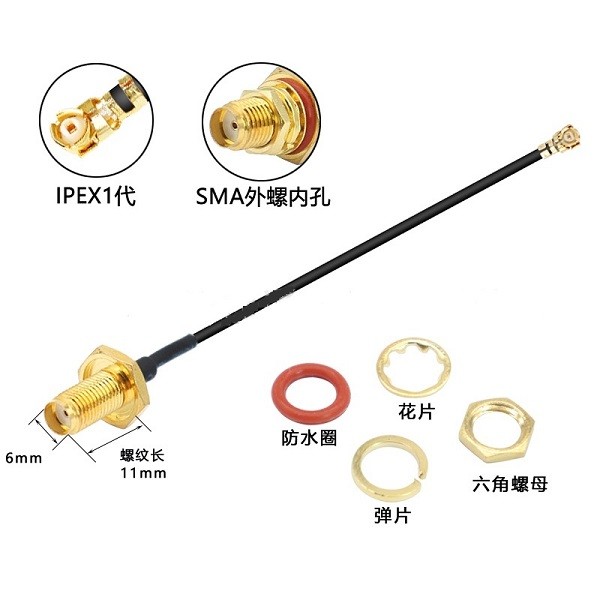

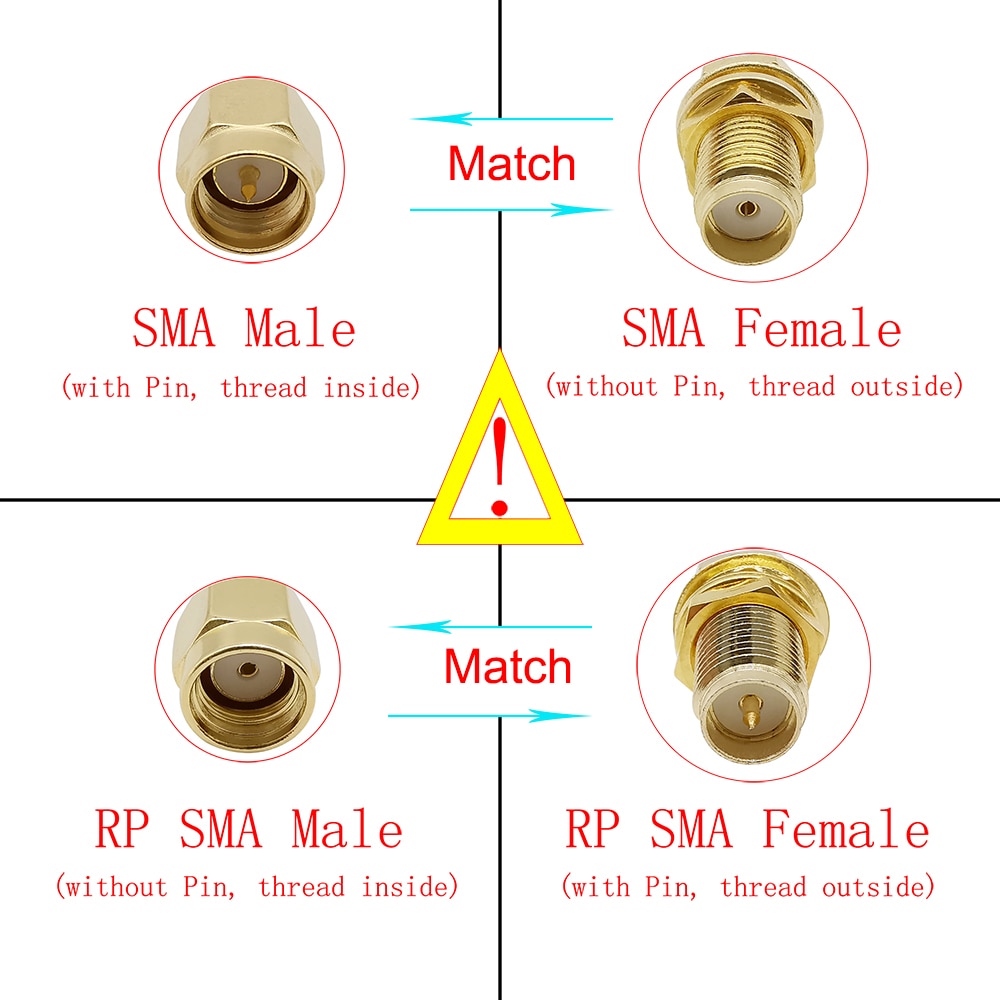

  • Connector A: SMA female / RP-SMA female
  • Connector B: U.FL / IPEX
  • INQUIRY   EMAIL
Product Description:

U.FL IPX IPEX UFL To SMA Male Female 1.13mm Pigtail Cable for PCI Wifi Card Wireless Router Extension


A. Electrical Characteristics
Frequency: <= 12 GHz
Impedance: 50 Ohm
V.S.W.R.: <= 1.5
Insertion Loss: <= 1.0 dB / GHz
Voltage (breakdown): > 500V
Insulation Resistance: >= 500 M ohm
Center Conductor Contact Resistance: <= 25 m ohm
Outer Conductor Contact Resistance: <= 15 m ohm

B. Mechanical Characteristics
Material of Conductor: Brass (Cu)
Pull Test (Retention): >= 27 Kg (270N) for Screw Type
Pull-Engagement Force: <= 2.7 Kg (27N) for Plug Type
Pull-Separation Force: 1~2 Kg (10 ~ 20 N) for Plug Type
Pull Test of SMA Connector: >= 3 Kg
Pull Test of Mini Connector: >= 1 Kg
Mating Cycles: > 500

C. Environmental
Operation Temperature: - 40 ˚C ~ + 65 ˚C
Storage Temperature: - 40 ˚C ~ + 80 ˚C
