5G FULL BAND ANTENNA
- Product Item:EM-5G-1
- Category:5G antenna
- Frequency: 600-960;1710-2700;3300-5000MHz
- Gain: 3-5dBi
- VSWR: <2.0
- Dimension: 222mm(L)*27mm(W)
Product Description
5G FULL BAND ANTENNA
Electrical Properties
Frequency: 600-960MHz; 1710-2700MHz; 3300-5000MHz
Impedance: 50 Ohm Nominal
VSWR: 3.0MAX
Peak Gain: 3-5dBi
Polarization: Linear
Radiation Pattern: Omni
Max.input power: 2W
Connector: SMA PLUG
Physical Properties
Antenna Material: PCB
Cable Type: Ф1.37CABLE
Working Temp.: -40 ~ +75 ˚C
Cable Color: Gray

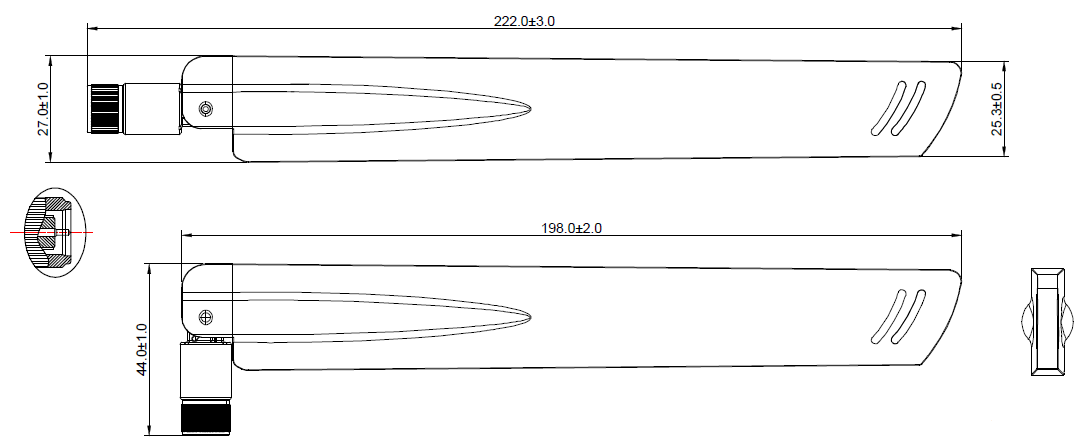

Dimension:

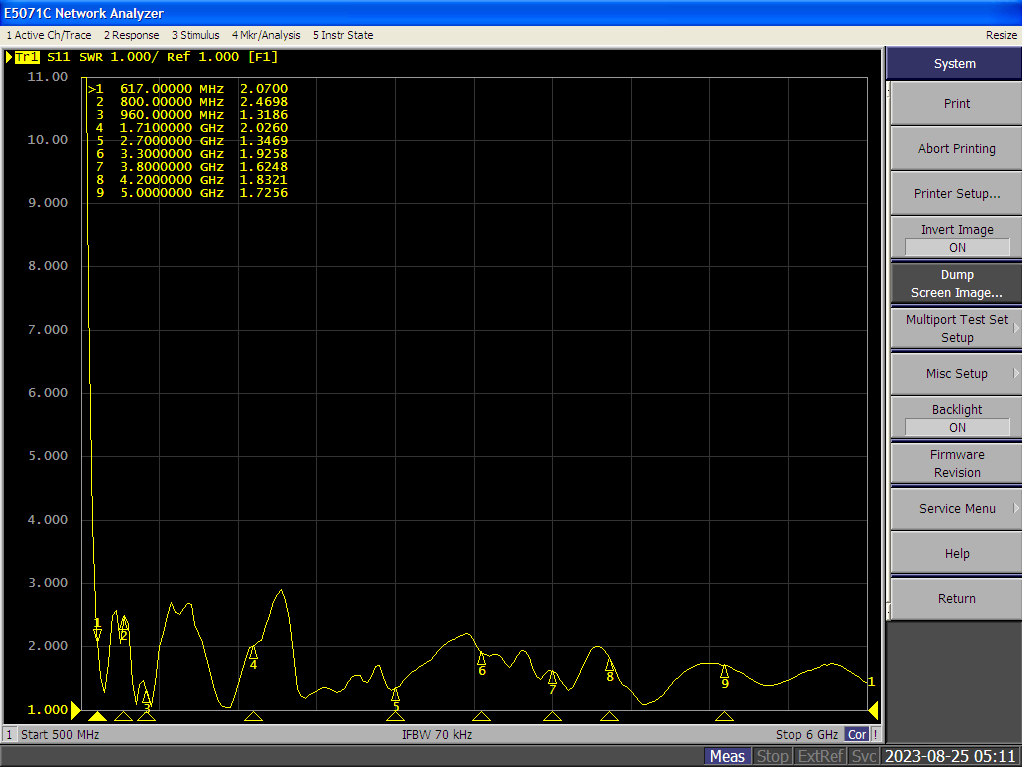

VSWR:
