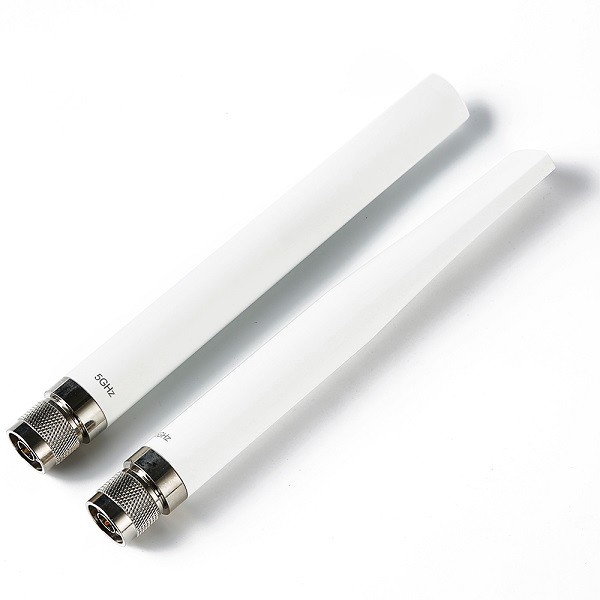

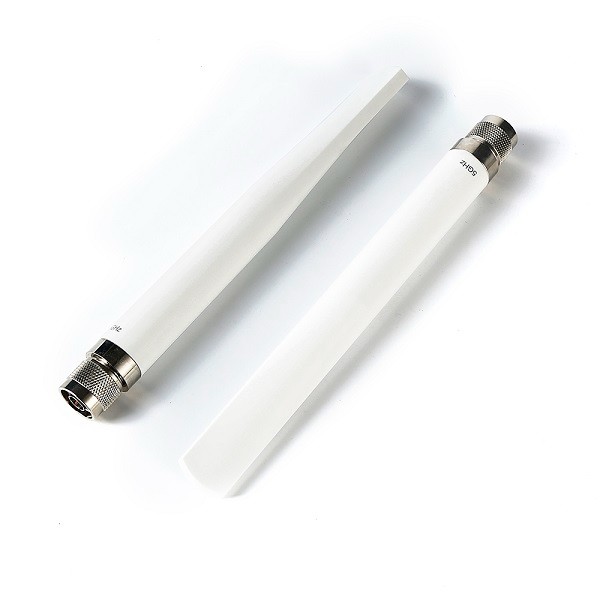

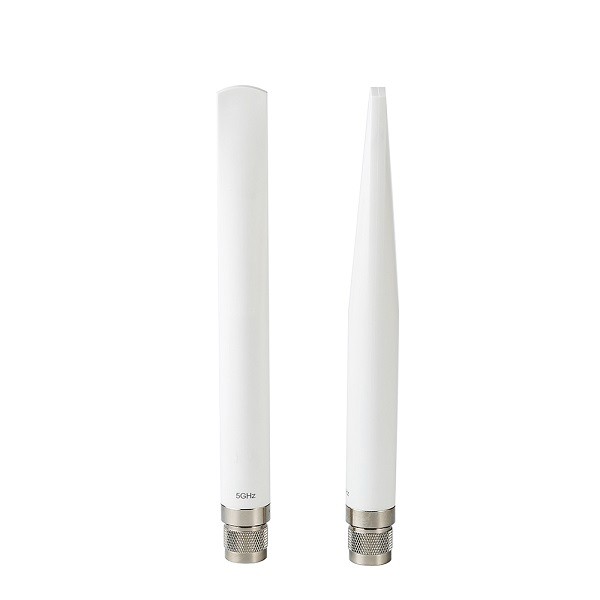

Dual band 2.4G 5GHz fiberglass omni WiFi antenna

Dual band 2.4G 5GHz fiberglass omni WiFi antenna

A. Electrical Characteristics
Frequency: 2400 ~ 2500 MHz & 5000 ~ 6000 MHz
V.S.W.R.: <= 2.5 @ 2400 ~ 2500 MHz
             <= 2.2 @ 5000 ~ 6000 MHz
Peak Gain: 3.5 dBi @ 2400 ~ 2500 MHz
                5.0 dBi @ 5150 ~ 5850 MHz
Radiation Pattern: Omni-Directional
Max Input Power: >= 2 W
Polarization: Linear
Impedance: 50 Ohm

B. Material & Mechanical Characteristics
Material of Radiator: PCB
Material of Plastic Body: PC110U
Cable Type: RG-178U

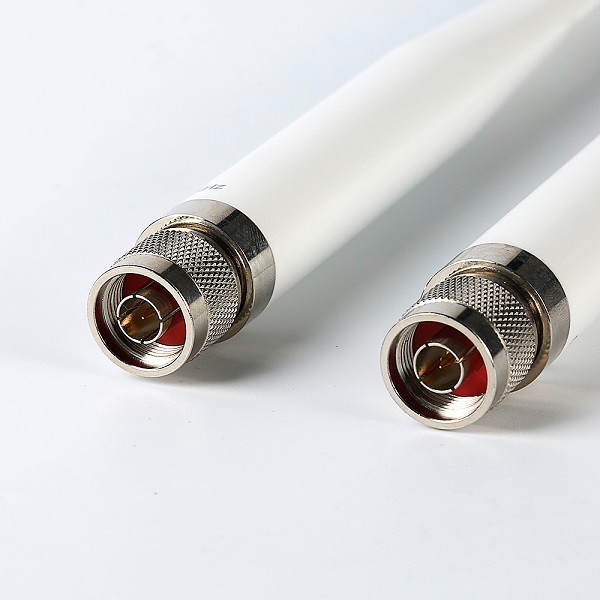

Connector Type: N Male

C. Environmental
Operation Temperature: - 40 °C ~ + 65 °C
Storage Temperature: - 40 °C ~ + 80 °C
Antenna Color Storage life: < 2 year

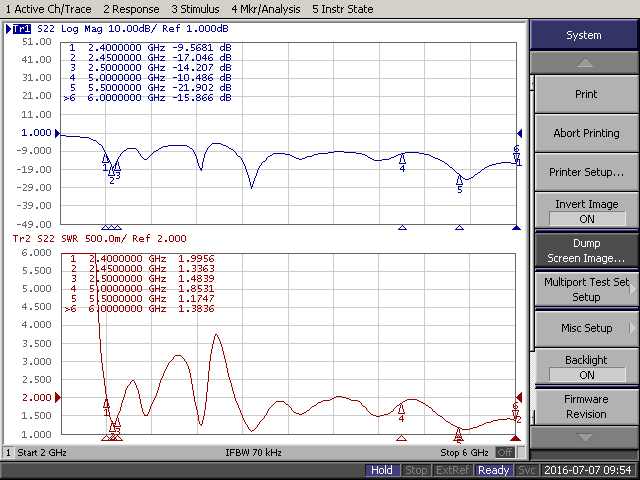

Antenna - S Parameter Test Data

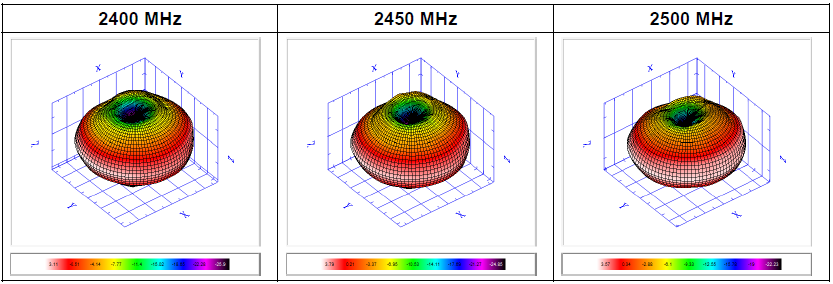

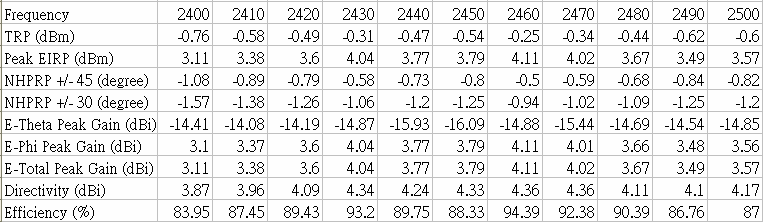

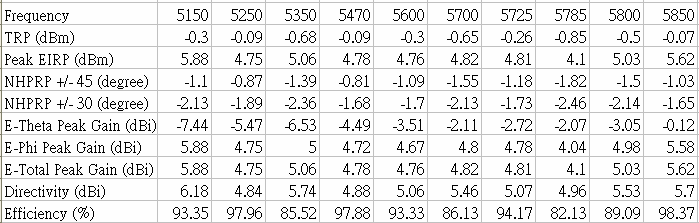

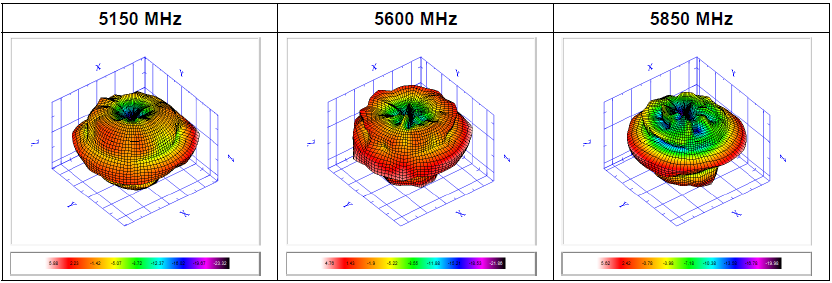

Antenna - Radiation Pattern Test Data

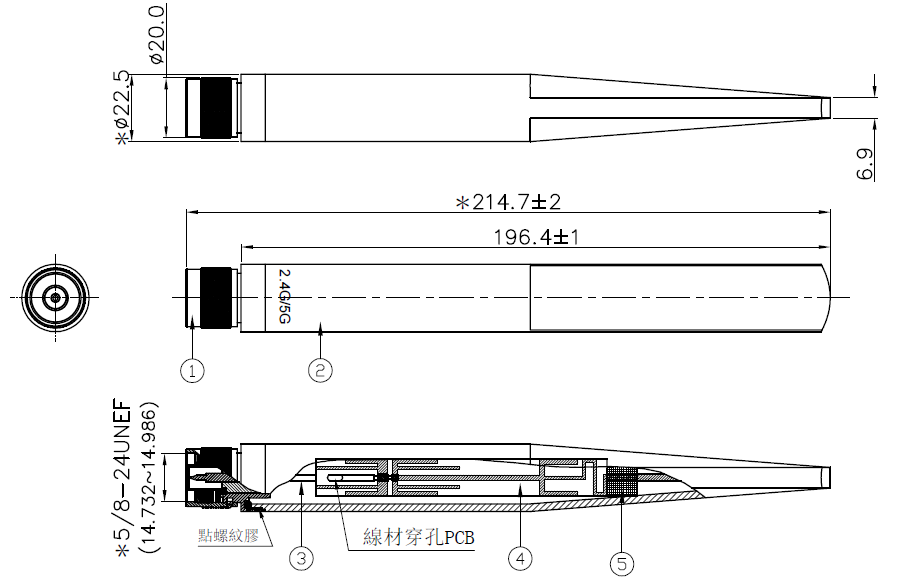

Dimension
