4G LTE full band & Sub-6G Antenna

Product Item:EM-4G-5
Category:4G LTE Antenna
Frequency: 824-960MHz, 1710-2700MHz, 3300-3800MHz, 4400-5000MHz
Gain: 3-4dBi
VSWR: <2.0
Dimension: 229mm(L)*22mm(W)*13mm(H)

Product Description

4G LTE full band & Sub-6G Antenna

Spec:

Frequency Range: 824-960MHz, 1710-2700MHz, 3300-3800MHz, 4400-5000MHz
Gain: 824-960MHz: 2.6dBi; 1710-2700MHz: 3.5dBi; 3300-3800MHz: 3.4dBi; 4400-5000MHz: 3.3dBi
VSWR: ≤2.0
Polarization: Linear polarization
Impedance: 50ohm
Maximum Input Power: 50W
Connector: SMA Male
Operating Temperature: -40℃ to+80℃
Antenna Dimension: 229mm(L)*22mm(W)*13mm(H)

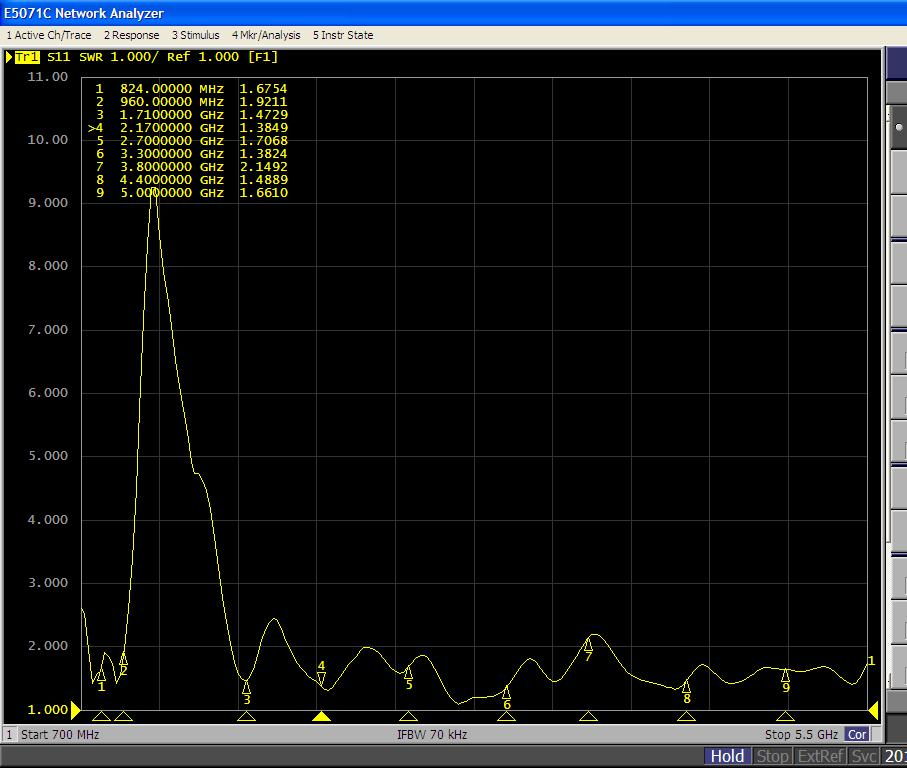

VSWR:
