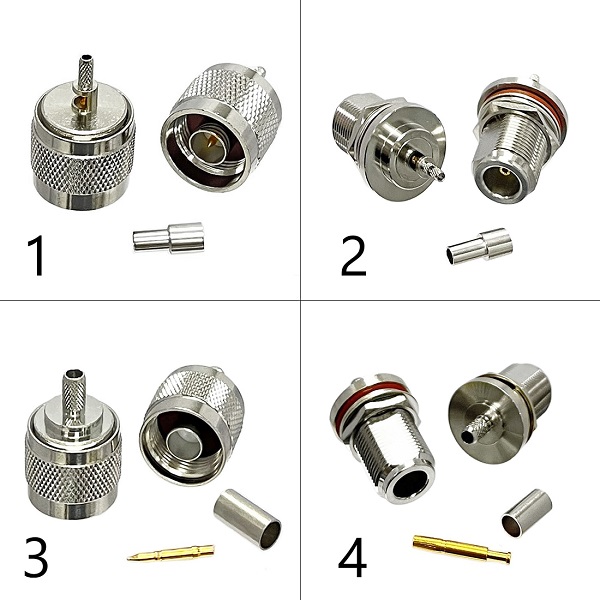

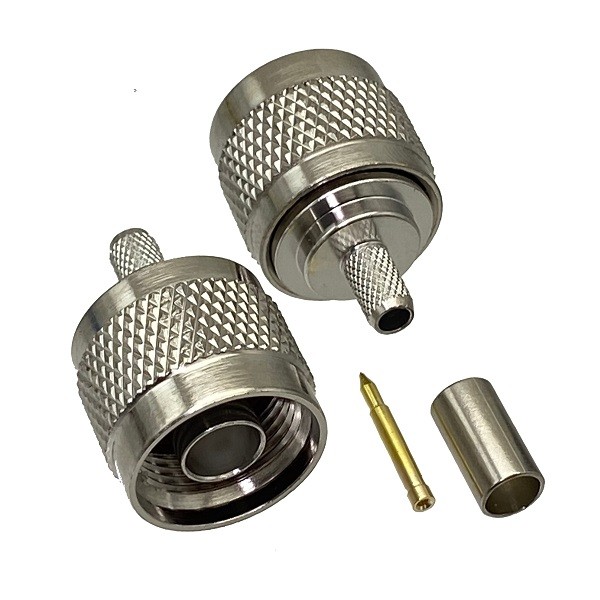

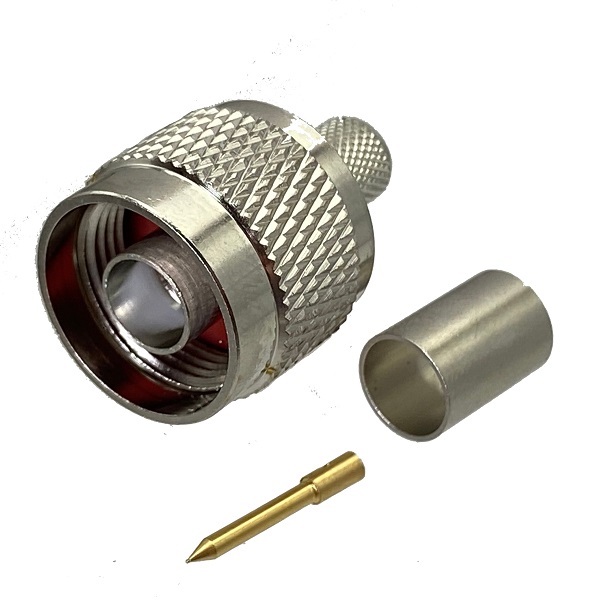

N Type Male RF Coax Connector Crimp for RG316 RG174 RG58 RG142 Cable

N Type Male RF Coax Connector Crimp for RG316 RG174 RG58 RG142 Cable

Major Technical Characteristics
Temperature Range: -55~+155°C(PE Cable -40~+85°C)
Impedance: 50Ω
Frequency Range: DC~4GHz
Working Voltage: 1000V r.m.s at sea level

Withstanding Voltage: 2500V r.m.s at sea level

Contact resistance: a)Center Contact   ≤1m Ω
                            b)Outer Contact ≤1m Ω

Insulation resistance: ≥5000MΩ

Center Conductor retention force: ≥0.56N

Vibration: 100m/S2(10~500Hz),10g
Coupling nut retention force: 450 N

Disengagement force: 8~63 N
Voltage Standing Wave Ratio: Straight  ≤1.15/ 6GHz
                                          Right angle ≤1.25/6GHz

Durability(mating): ≥500times(cycles)

MATERIAL & PLATING

Body: brass Nickel plated
Resilient contact: Beryllium-copper Gold plated
Pin contact: brass Gold plated
Socket contact: Beryllium-copper Gold plated
Insulator: PTFE
Crimp ferrule: Copper alloy Nickel or gold plated
O-ring sealing: silicone rubber
