External 2.4GHz Omni Direction Rubber Duck Antenna 3dBi RF-SMA WIFI Antenna

External 2.4GHz Omni Direction Rubber Duck Antenna 3dBi RF-SMA WIFI Antenna

A. Electrical Characteristics
Frequency: 2400 ~ 2500 MHz
S.W.R.: <= 2.0
Antenna Gain: 3.0dBi
Polarization: Linear
Impedance: 50 Ohm

B. Material & Mechanical Characteristics
Material of Radiator: Cu
Material of Plastic Body: TPEE
Hinge: PA66+ABS
Holder: PA66+ABS
Cable Type: RG-178
Connector Type: SMA Male
Connector Pull Test: >= 5 Kg
Connector Torque Test: 300 ~ 1000 g.cm

C. Environmental
Operation Temperature: - 40 °C ~ + 65 °C
Storage Temperature: - 40 °C ~ + 80 °C

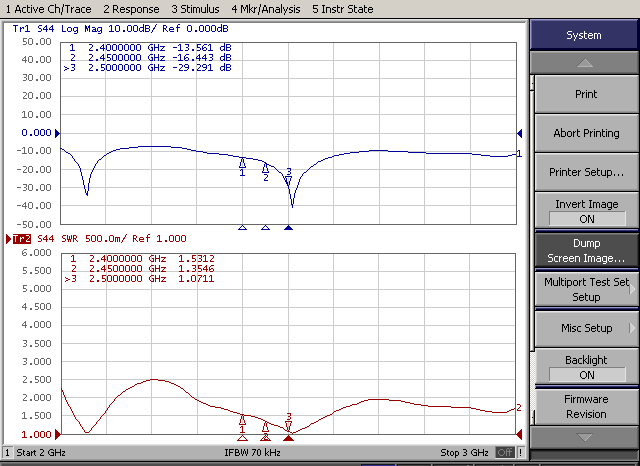

Antenna - S Parameter Test Data

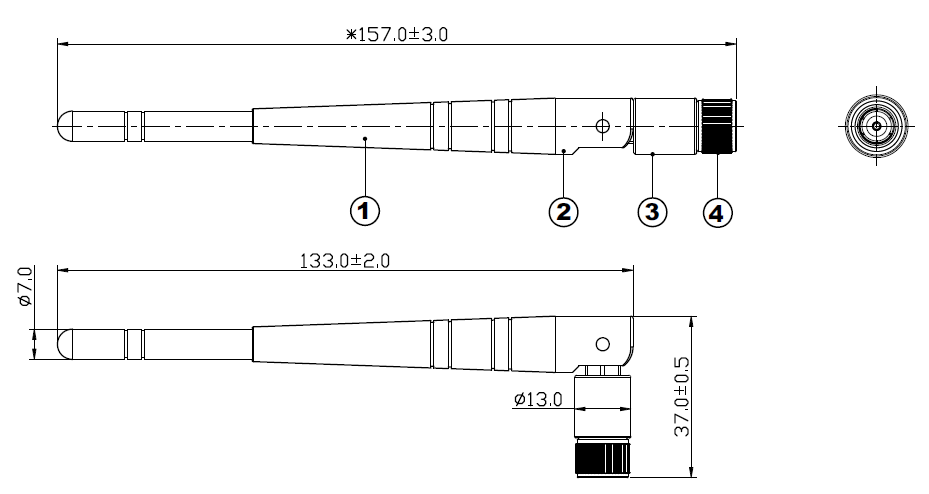

Size
