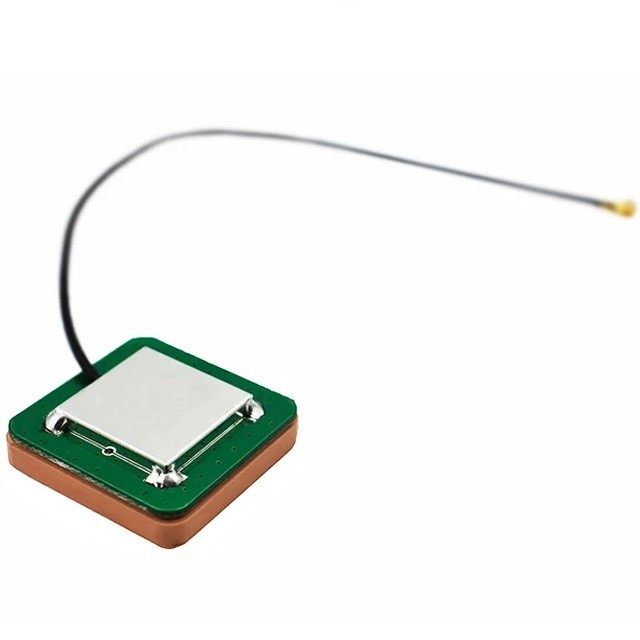

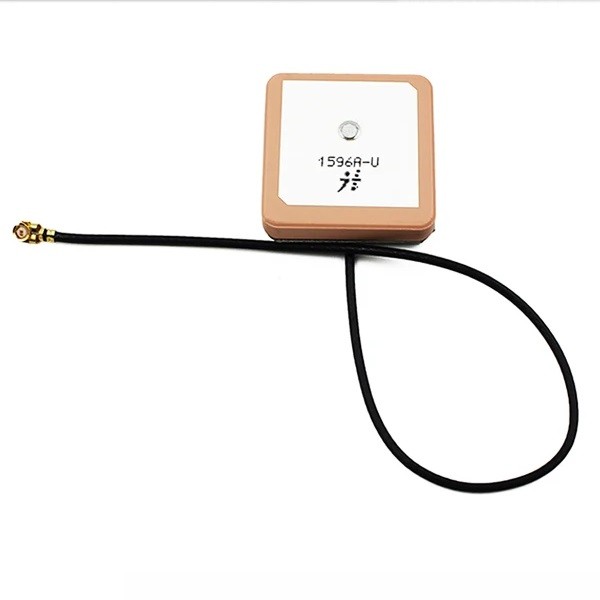

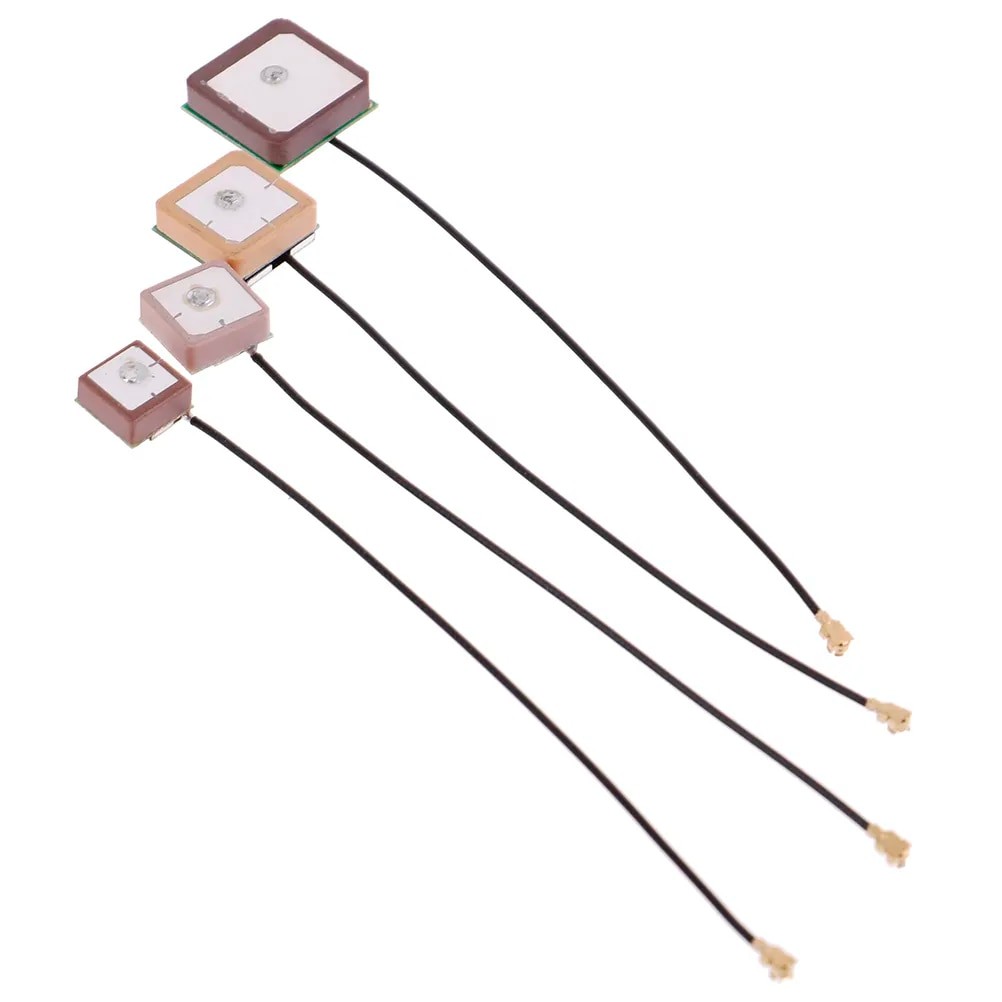

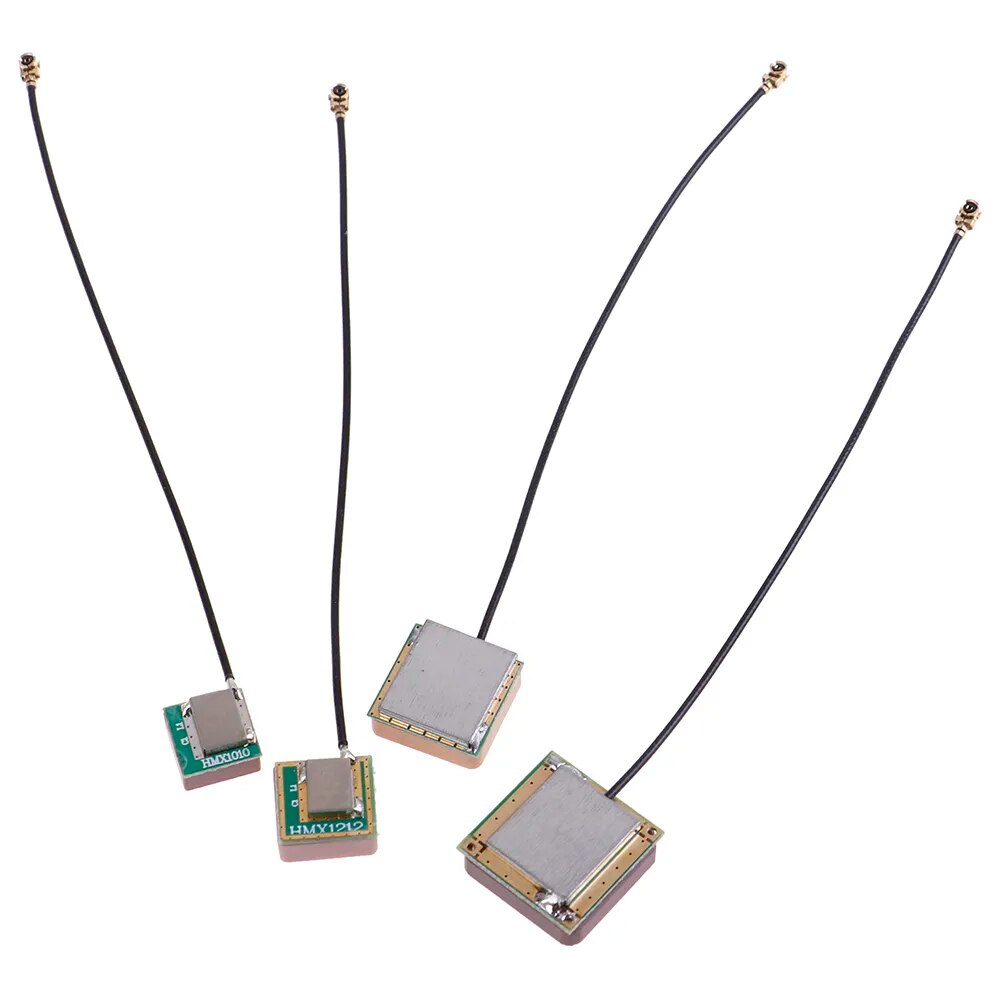

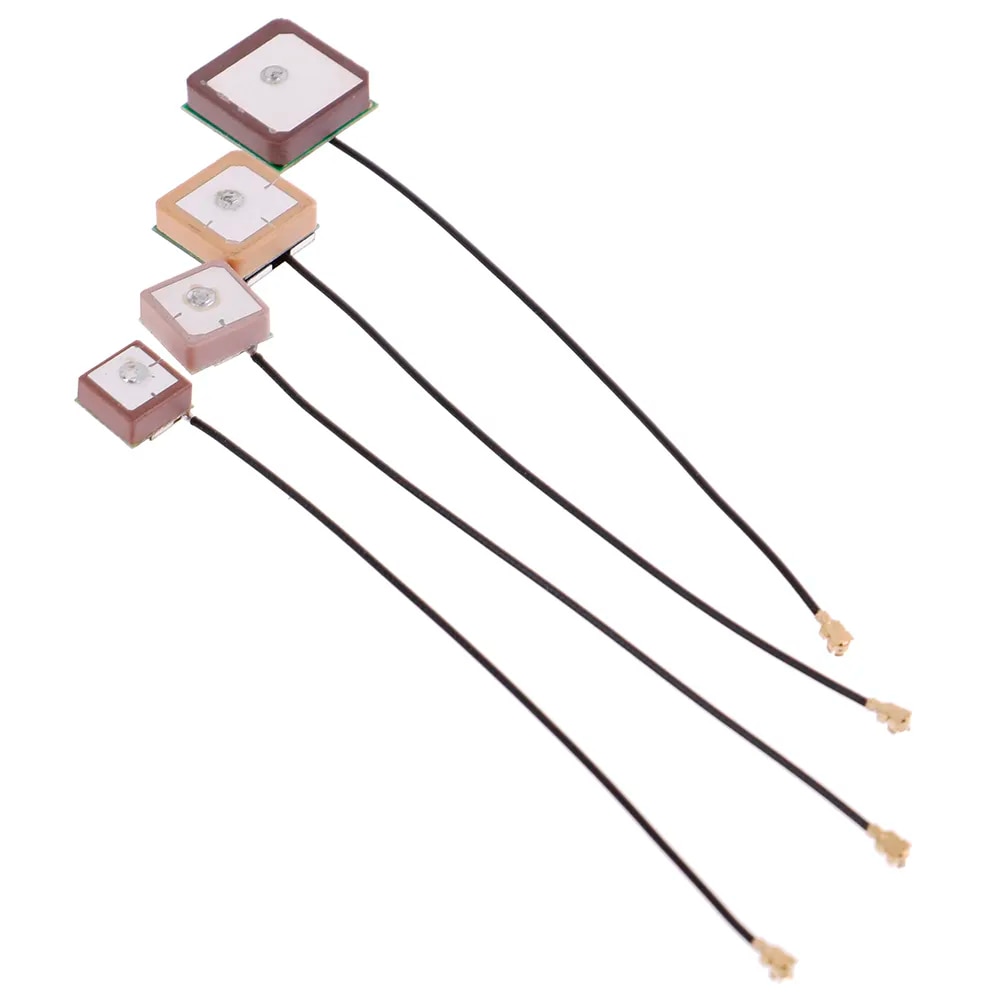

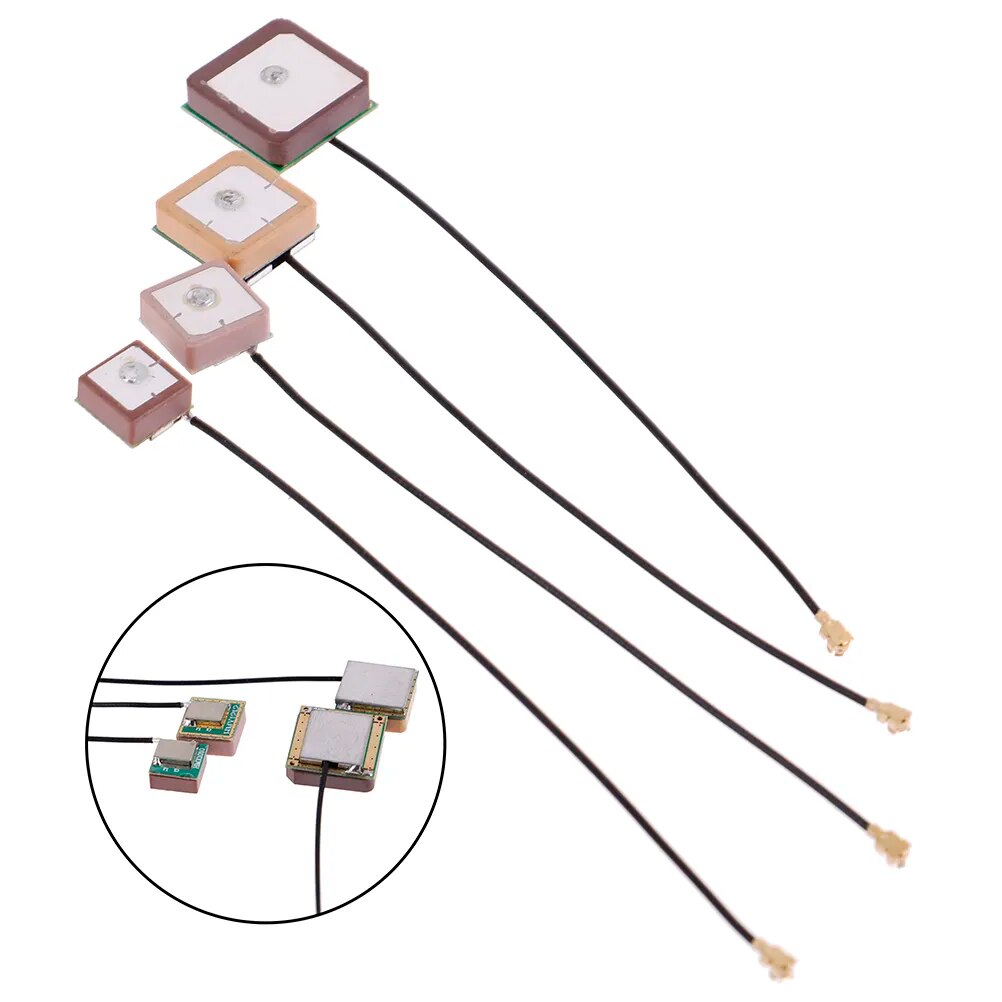

28dBi Ceramic internal patch active GPS GLONASS antenna
- Product Item:E-GPS-2
- Category:GPS antenna
- Frequency:1575.42±3MHz
- Gain: 28dBi
- Dimension: 25*25*4mm
- Connector: IPEX or others
28dBi Ceramic internal patch active GPS GLONASS dual antenna
|
Item |
Specifications |
|
|
Antenna |
Center Frequency |
1575.42±3MHz |
|
Band Width |
CF±5MHz |
|
|
Polarization |
RHCP |
|
|
Gain |
5dBic（Zenith） |
|
|
V.S.W.R |
＜1.5 |
|
|
Impendance |
50Ω |
|
|
Axial Ratio |
3dB（max） |
|
|

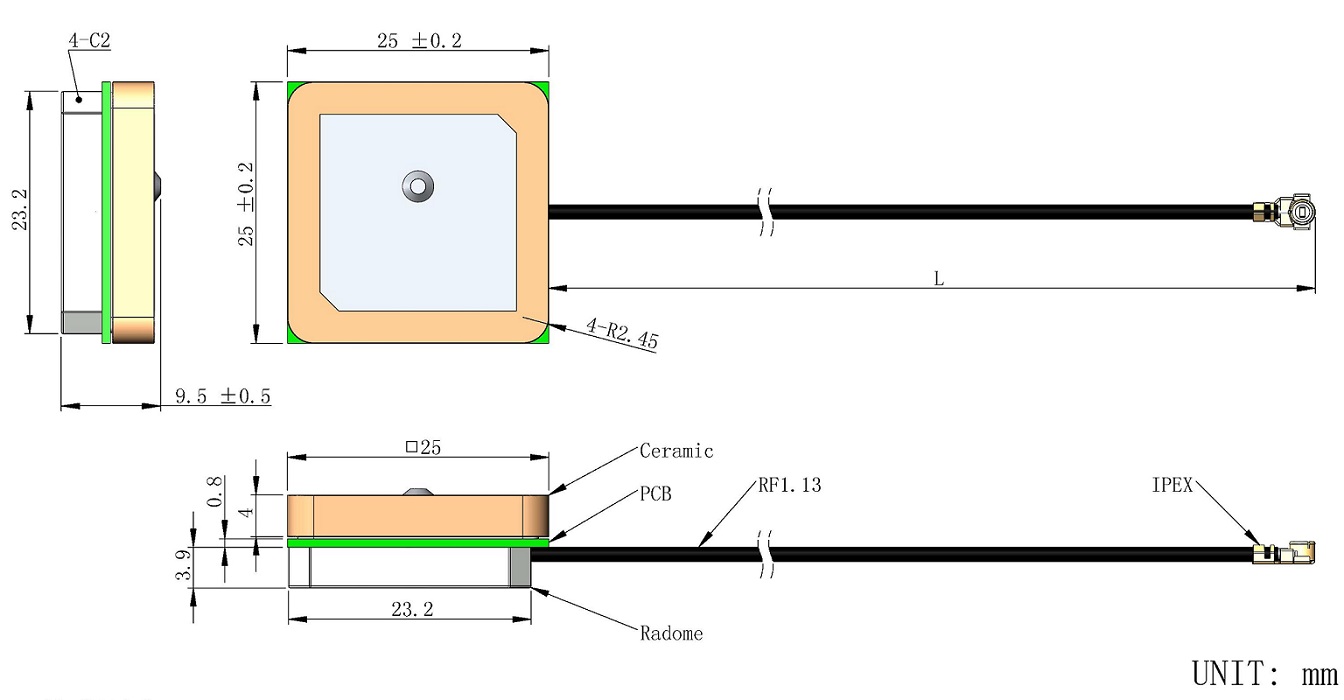

Dimension |
25*25*4mm |
|
|
LNA |
Gain |
28±2dB |
|
Noise Figure |
＜1.5 |
|
|
Filter Insertion Loss |
＜3dB |
|
|
Ex-band Attenuation |
12dB@CF+50MHz/16dB@CF-50MHz |
|
|
Supply Voltage |
2.2~5V DC |
|
|
Current Consumption |
5~15mA |
|
|
V.S.W.R |
＜2.0 |
|
|
Mechanical |
Cable |
RF1.13 or others |
|
Connector |

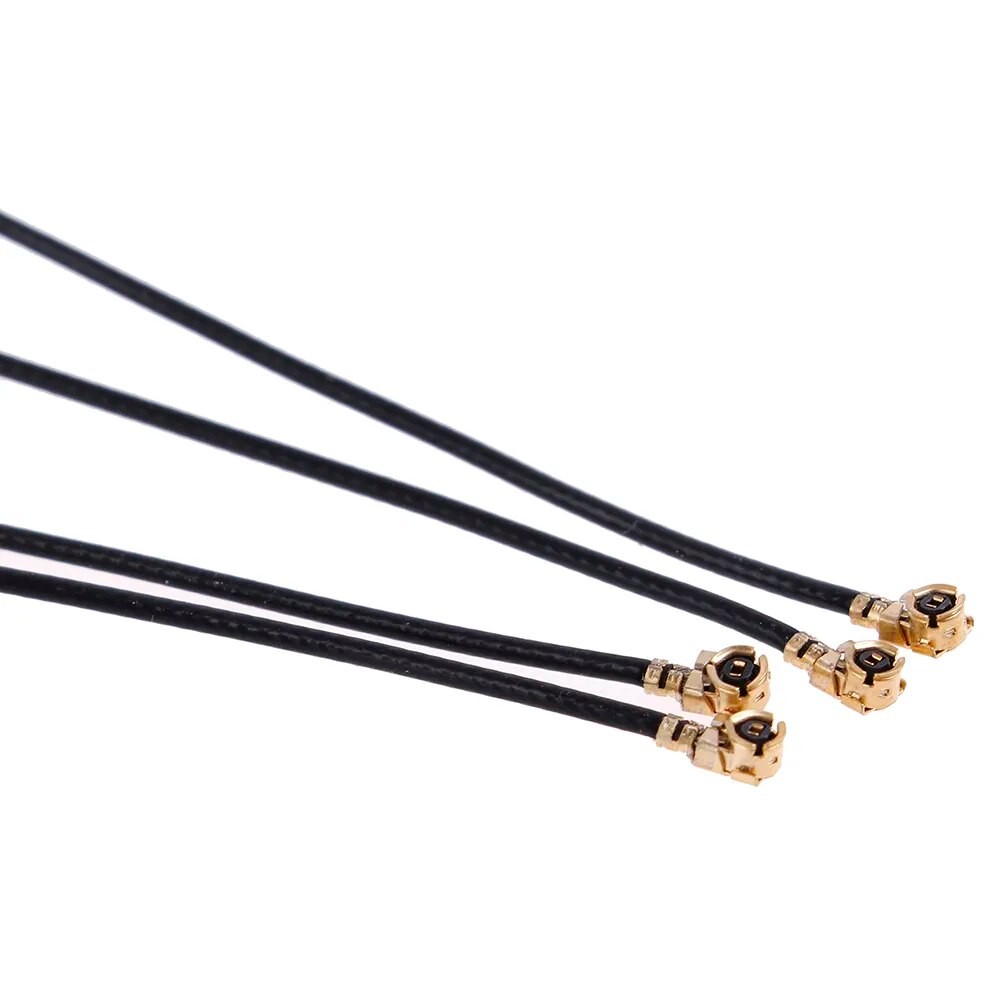

IPEX or others |
|
|
Environmental |
Operating Temperature |
-40℃~+85℃ |
|
Relative Humidity |
Up to 75% |
|
|
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
|
|
Environmentally Friendly |
ROHS Compliant |
|
