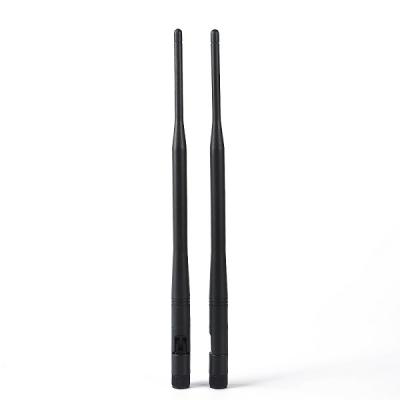

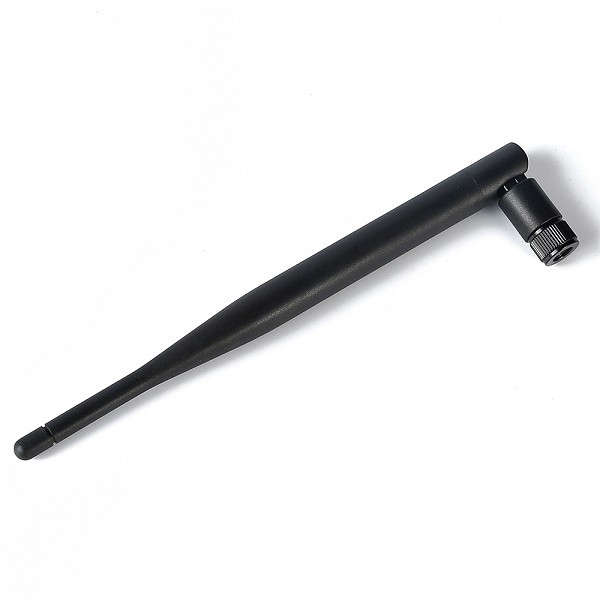

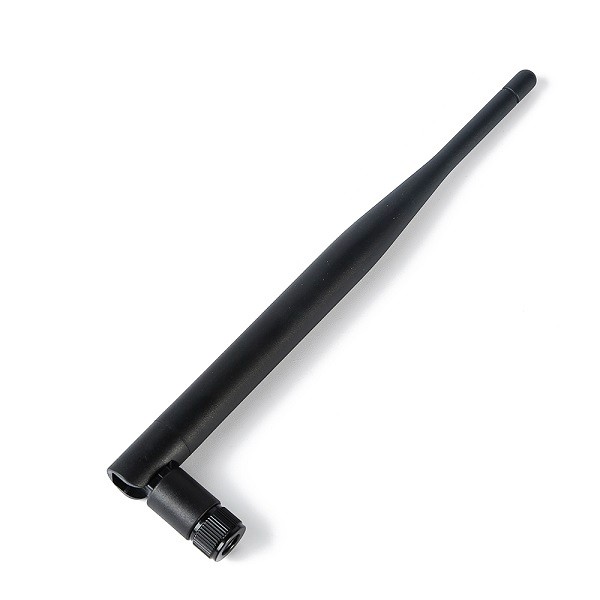

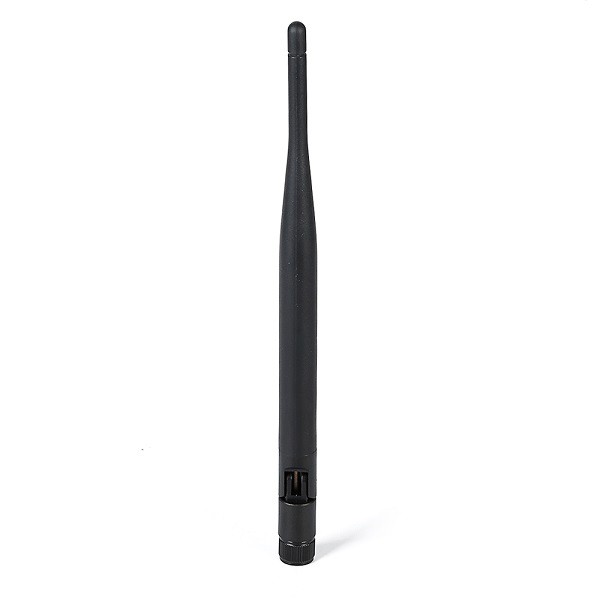

Rubber 5dBi WIFI Antenna For Router 2.4GHz Wireless Antenna with SMA

Rubber 5dBi WIFI Antenna For Router 2.4GHz Wireless Antenna with SMA

A. Electrical Characteristics
Frequency: 2400 ~ 2500 MHz
V.S.W.R: ≦2.0
Peak Gain: 5dBi / Max
Polarization: Linear
Impedance: 50 Ohm

B. Material & Mechanical Characteristics
Material of Radiator: CU
Material of Plastic: TPE / ABS
Cable Type: RG-178U

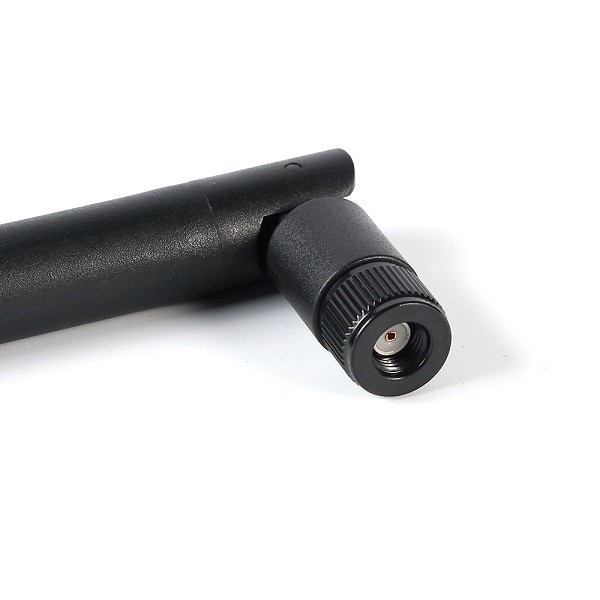

Connector Type: RP-SMA male

C. Environmental
Operation Temperature: - 40 ˚C ~ + 65 ˚C
Storage Temperature: - 40 ˚C ~ + 80 ˚C
Antenna Color Storage life: < 2 year

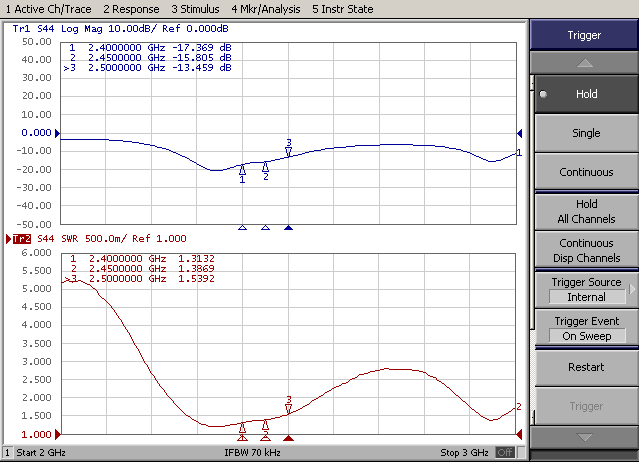

Antenna - S Parameter Test Data

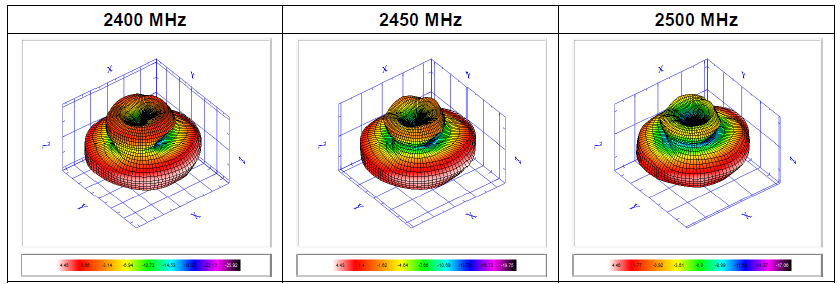

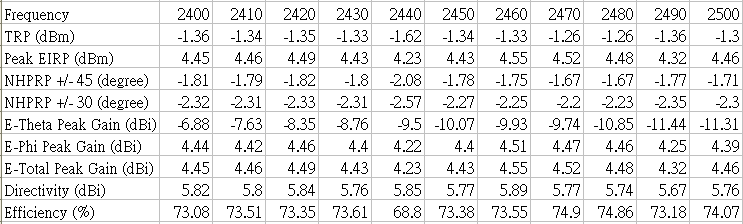

Antenna - Radiation Pattern Test Data

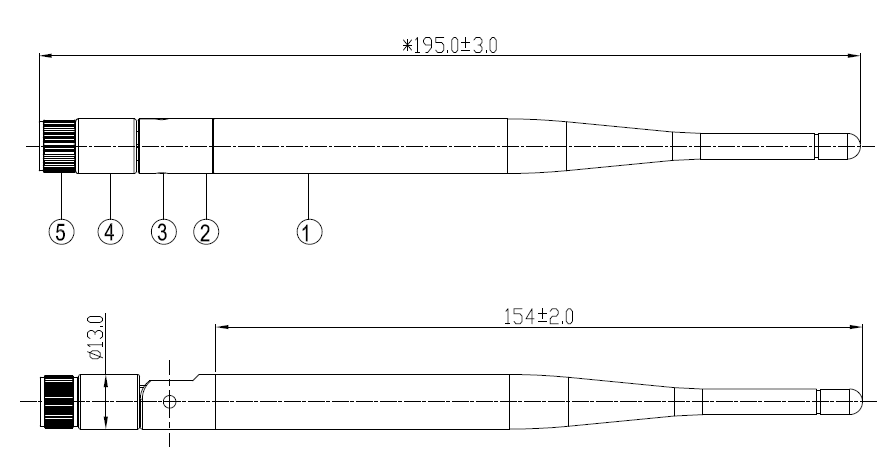

Size
