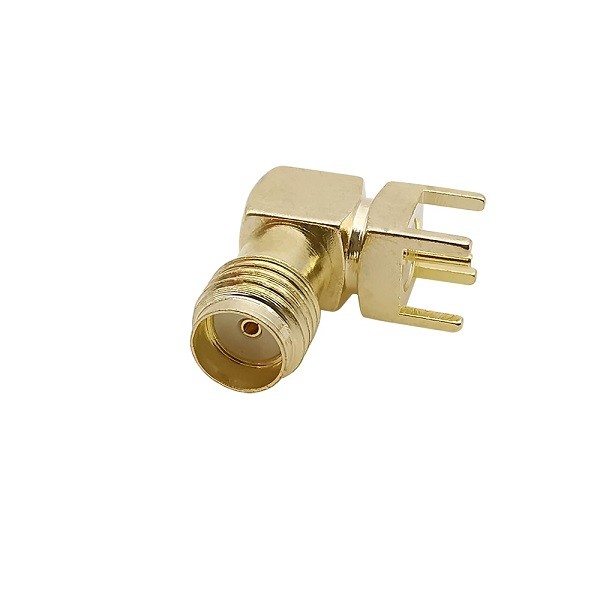

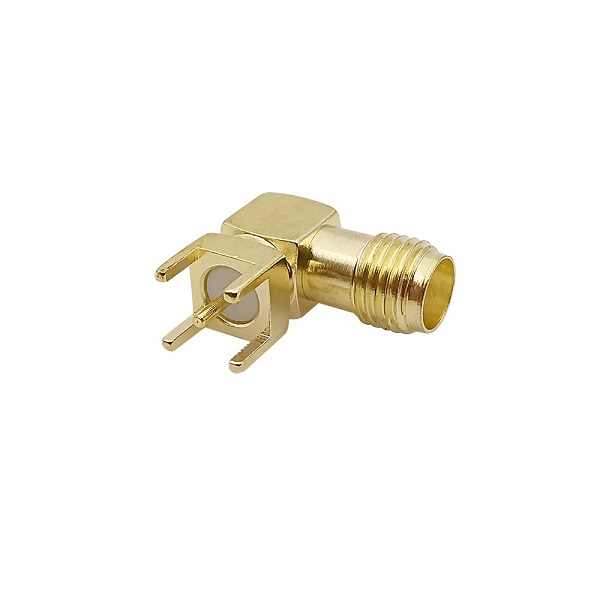

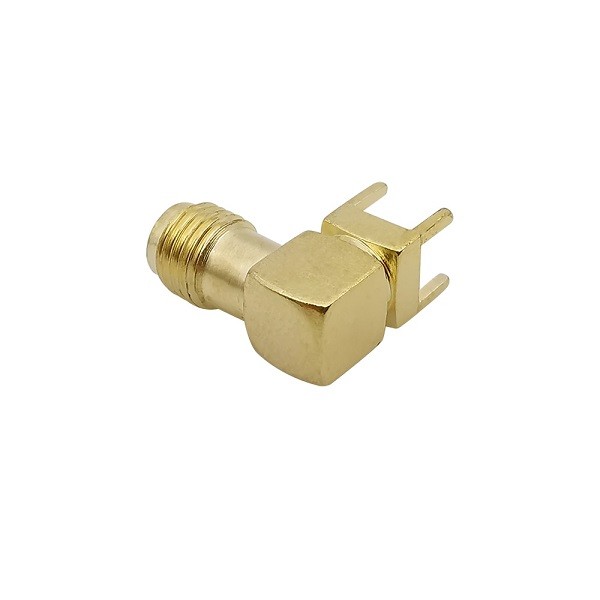

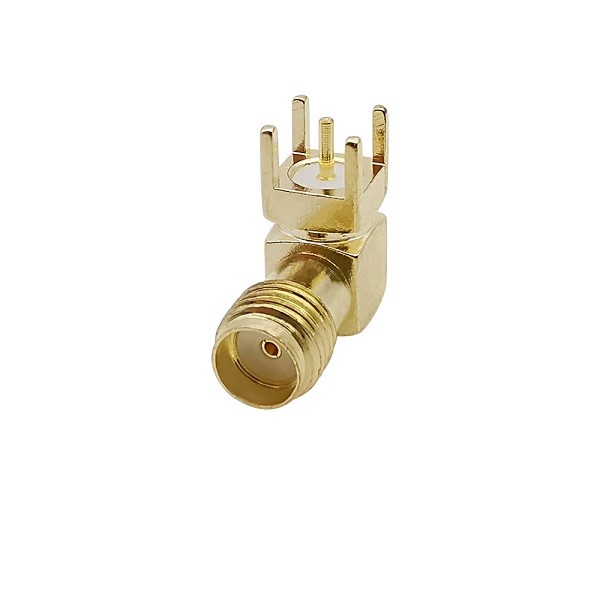

SMA Female Right Angle PCB Mount Connector

SMA Female Right Angle PCB Mount Connector

A. Electrical Characteristics
Frequency: DC~ 6 GHz
Impedance: 50 Ohm
V.S.W.R.: <= 1.3
Insertion Loss: <= 0.6 dB
Voltage (breakdown): > 500V
Working Voltage: <=170V / 50Hz
Insulation Resistance: >= 500 M ohm
Center Conductor Contact Resistance: <= 25 m ohm
Outer Conductor Contact Resistance: <= 15 m ohm

B. Material & Mechanical Characteristics
Housing: Brass / Au Plated
Center Contact: Brass / Au Plated
Insulator: PTFE
Mating Cycles: > 500

C. Environmental
Operation Temperature: - 40 ˚C ~ + 65 ˚C
Storage Temperature: - 40 ˚C ~ + 80 ˚C

D: Applications

    Suitable for Antennas, Broadcast, Radios, Wi-Fi, Telecom, Coaxial cable, LMR, Wireless LAN Devices, CCTV, Microwave Applications and Digital Communication System etc.

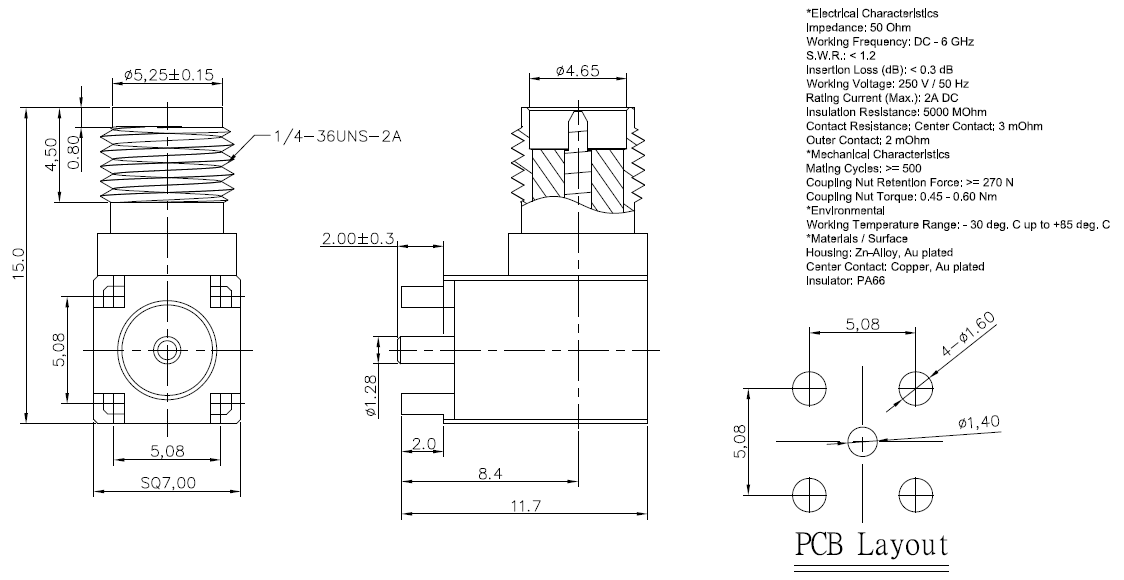

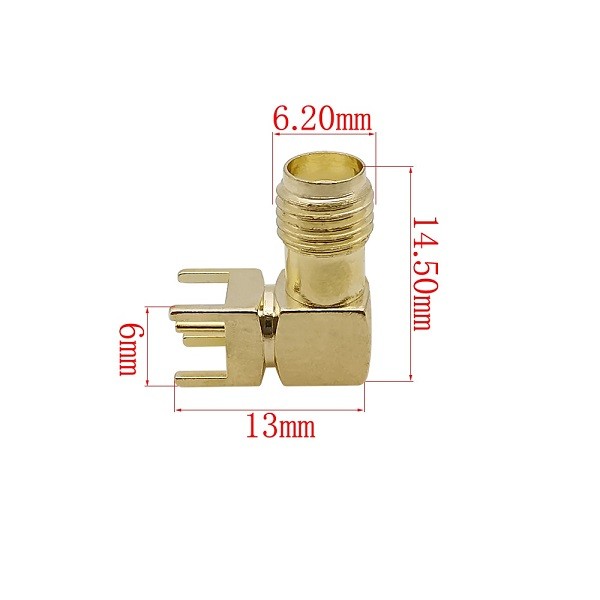

Drawing:
