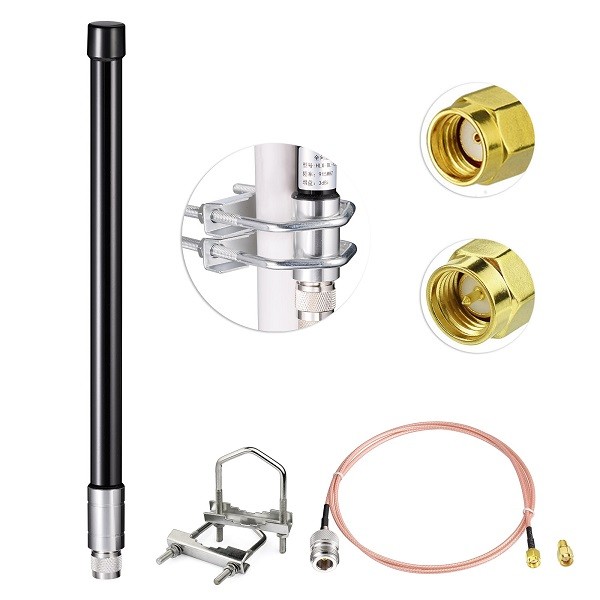

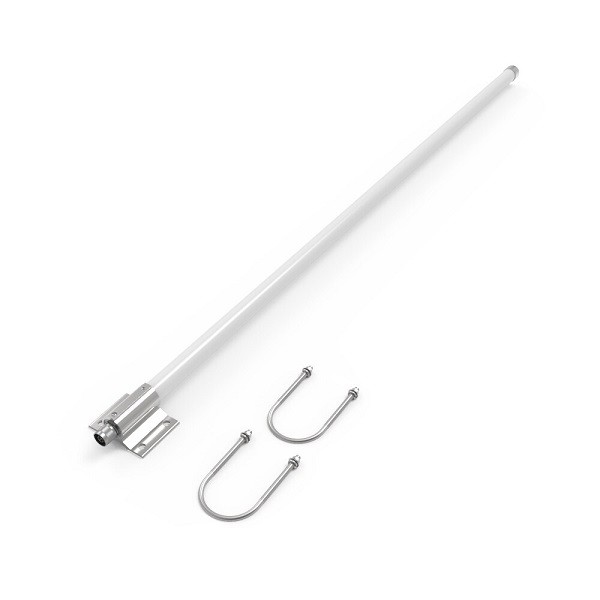

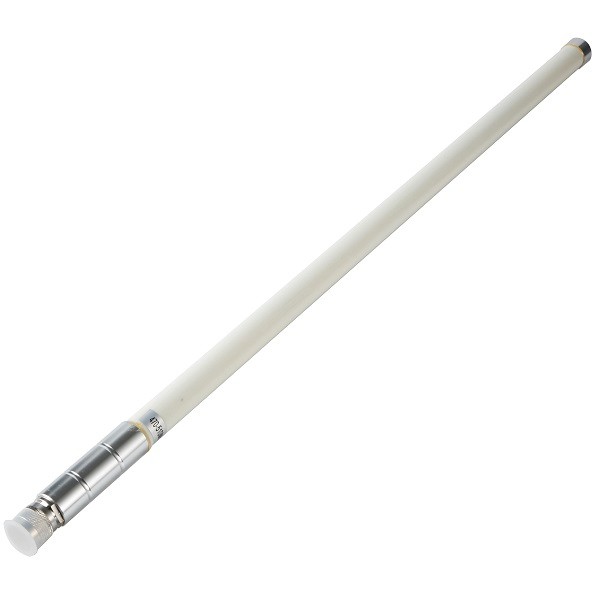

6dBi Outdoor ISM Lora 868MHz 915MHz Fibreglass Antenna With RG58 SMA

6dBi Outdoor ISM Lora 868MHz 915MHz Fibreglass Antenna With RG58 SMA

A. Electrical Characteristics
Frequency: 868-915 MHz
S.W.R.: <= 2.0
Peak Gain: 6 dBi
Polarization: Linear
Impedance: 50 Ohm

B. Material & Mechanical Characteristics
Material of Radiator: Cu
Cable Type: RG-178U-03
Connector Type: N male

C. Environmental
Operation Temperature: - 40 °C ~ + 65 °C
Storage Temperature: - 40 °C ~ + 80 °C

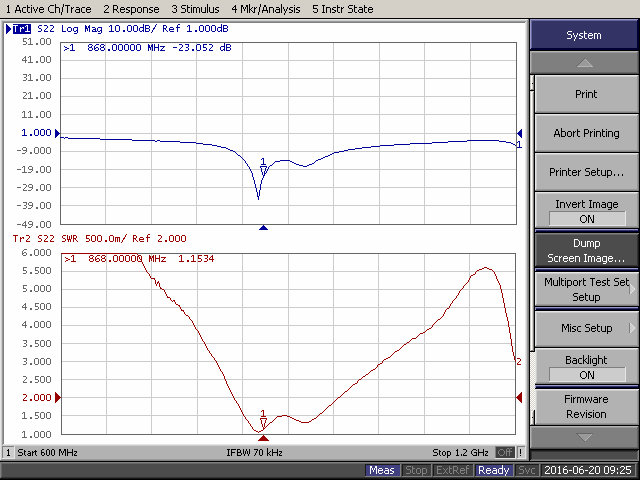

S Parameter Test Data

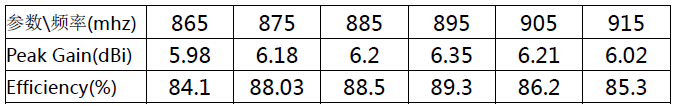

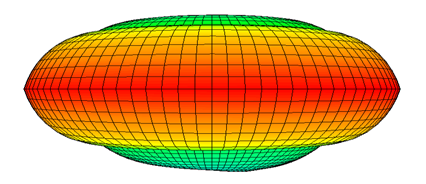

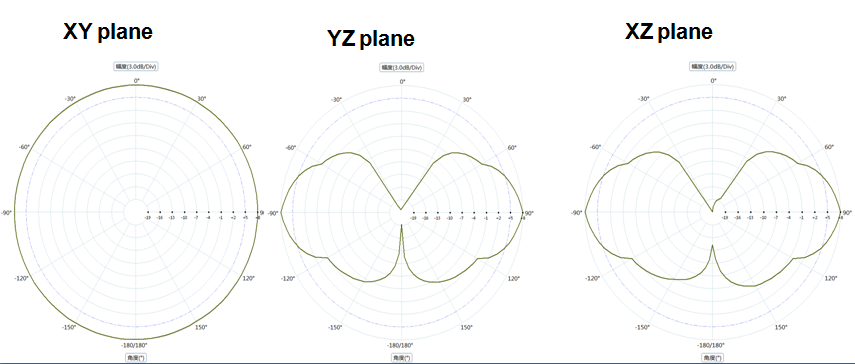

Gain Test

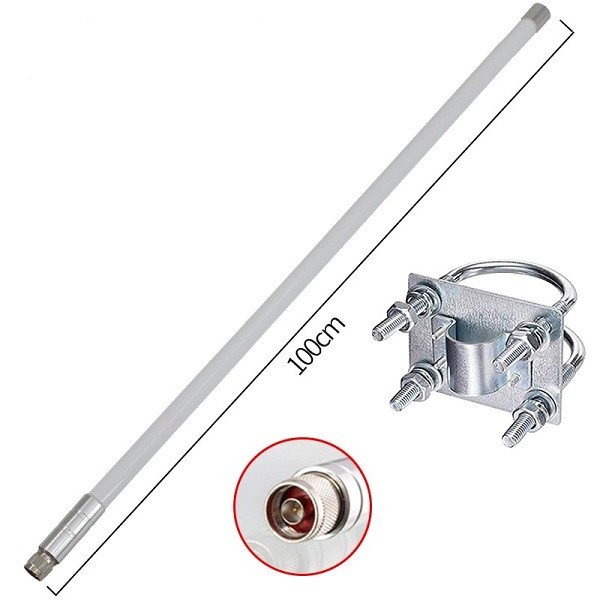

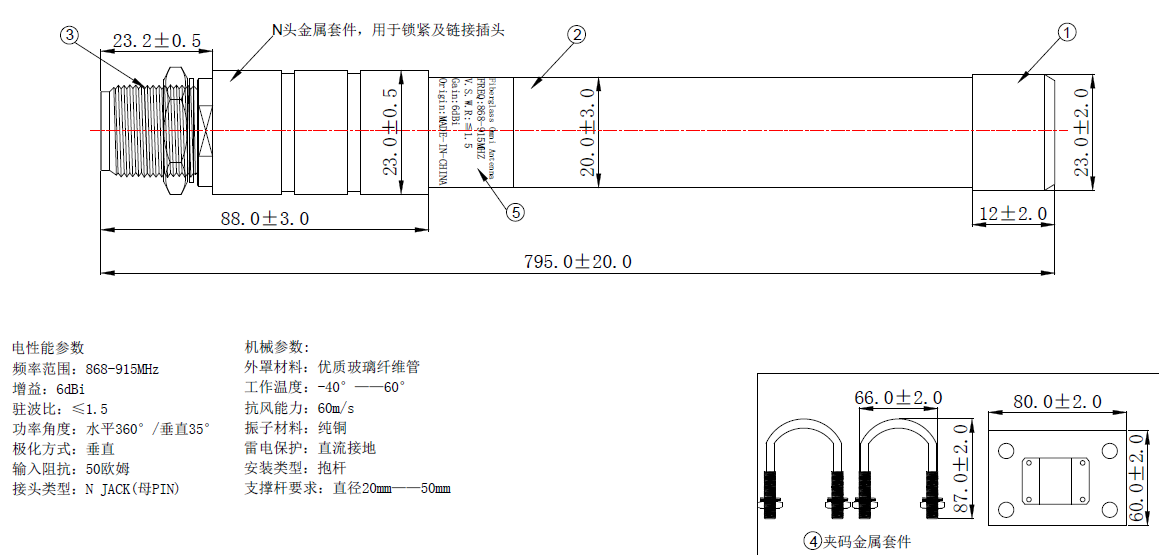

Dimension
