High Gain 28DBI GPS With SMA Connector GPS Active Antenna

  • Product Item:EM-GPS-01
  • Category:GPS antenna
  • Frequency: 1575.42±1MHz
  • Gain: 28dBi
  • Connector: RP-SMA male or SMA male
  • Size: 45*38mm
Share
Product Description

High Gain 28DBI GPS With SMA Connector GPS Active Antenna


Specifications
Center Frequency:  1575.42±1MHz
Band Width:  CF±5MHz
Polarization:  RHCP
Gain:  28dBi
V.S.W.R: <1.5
Impendance:  50Ω
Axial Ratio:  3dB(max)
Dimension:  25*25*4mm
Mechanical
Cable:  RG174
Connector:  SMA/or others
Radome Material:  ABS
Mounting Method:  Magnet/Adhesive
Environmental
Operating Temperature:  -40℃~+85℃
Relative Humidity:  Up to 95%
Ingress Protection:  IP65~IP67
Vibration:  10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly:  ROHS Compliant

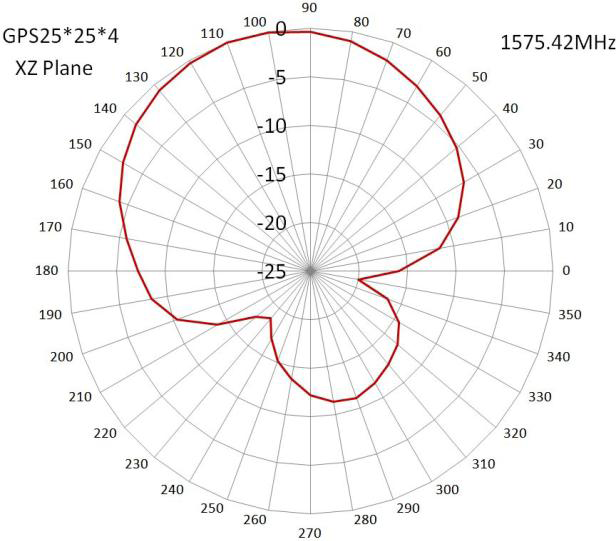

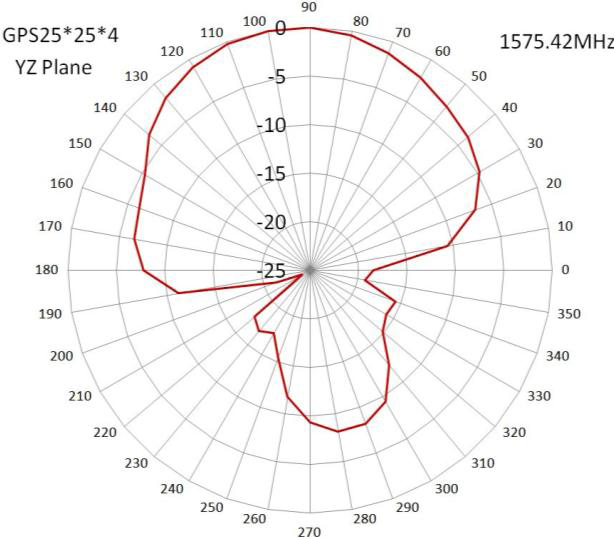

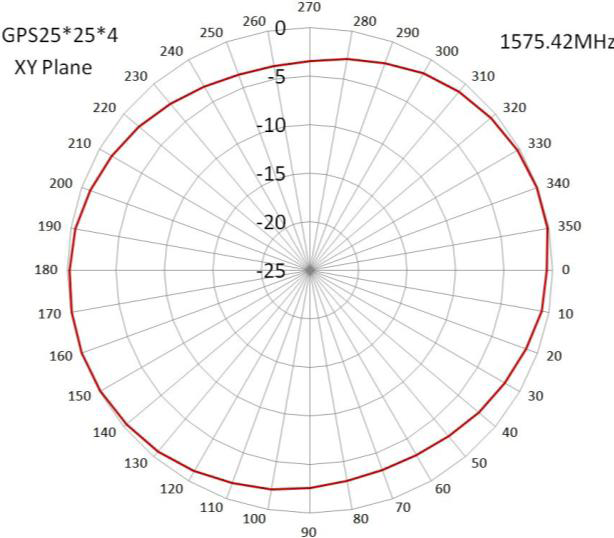

Radiation Pattern

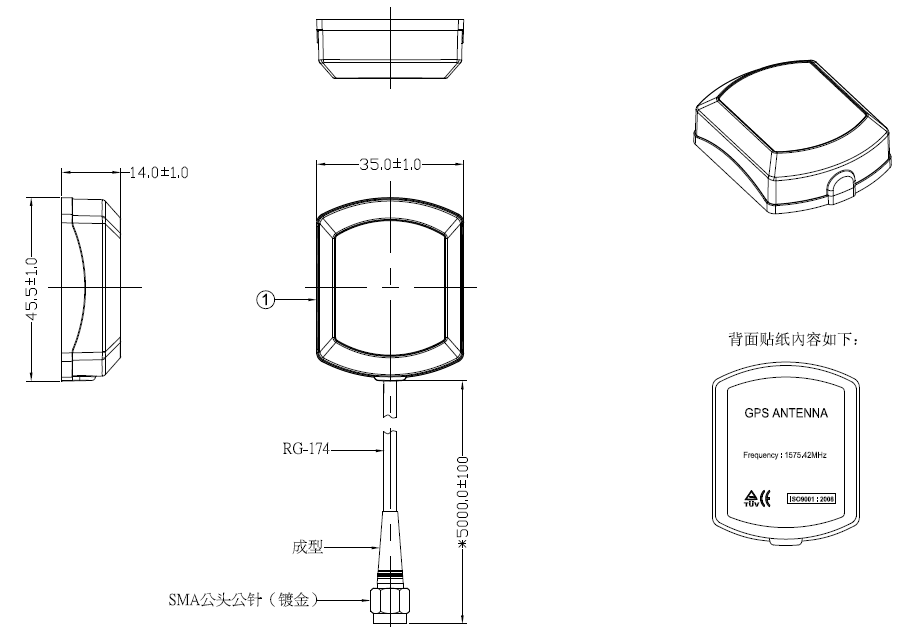

Dimension
