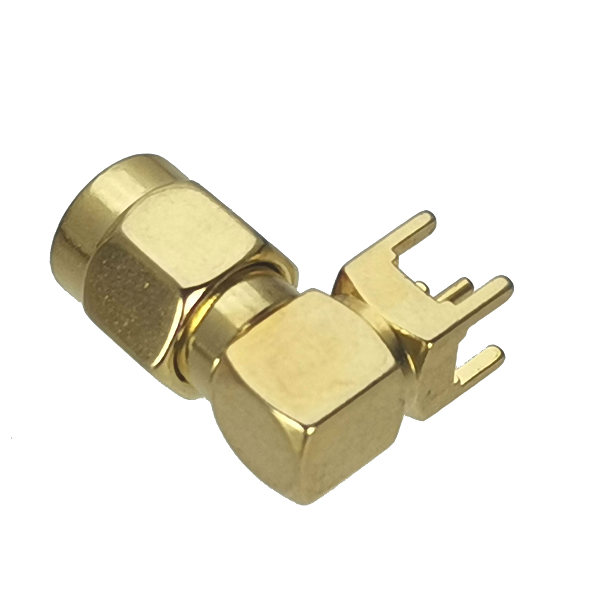

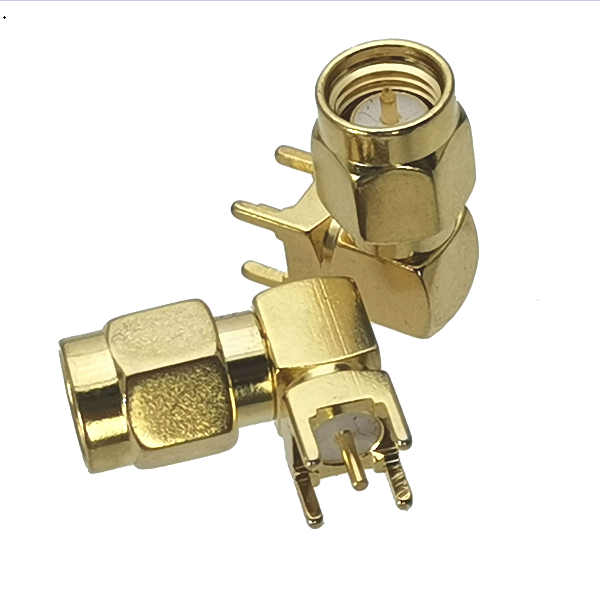

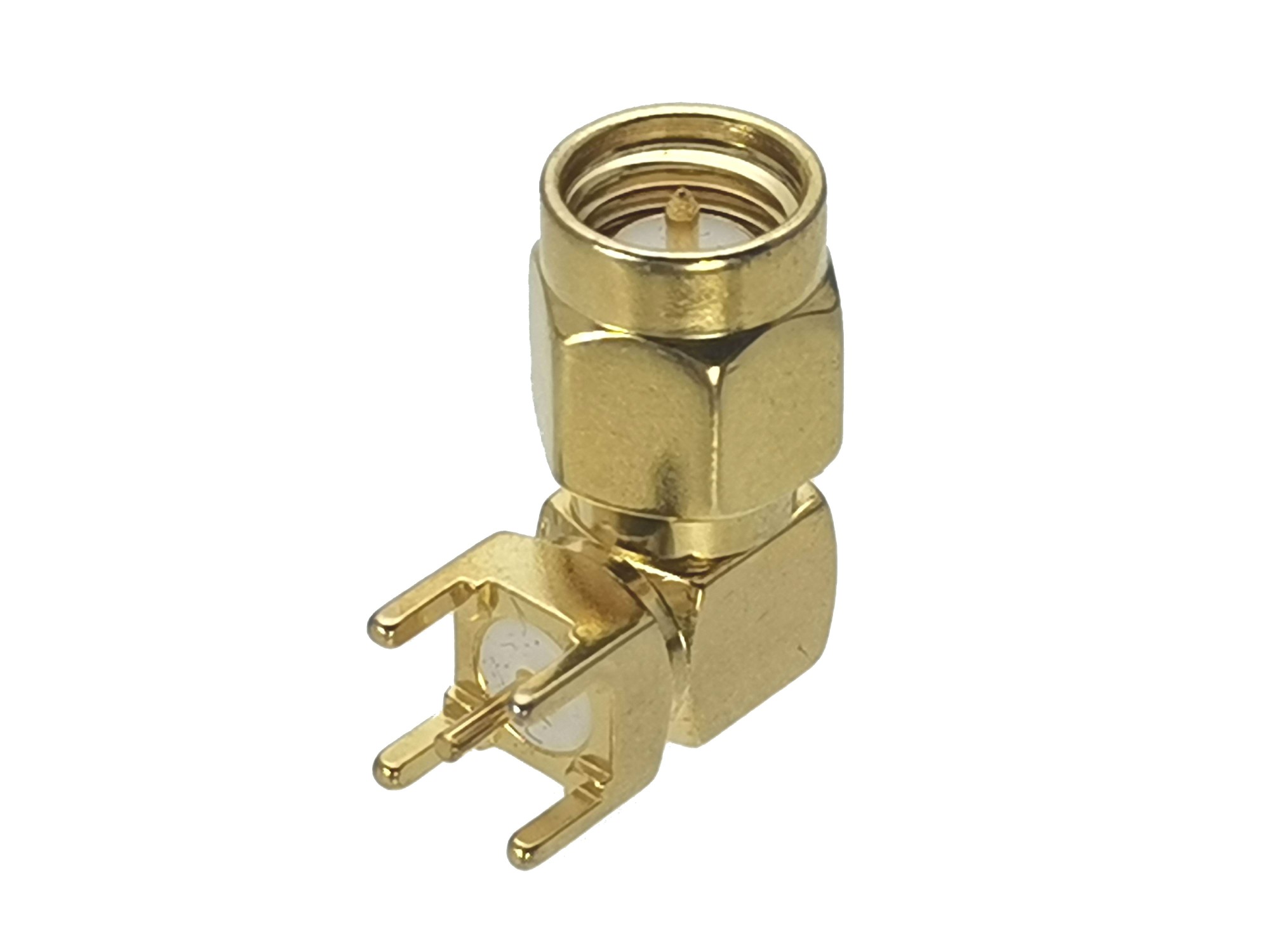

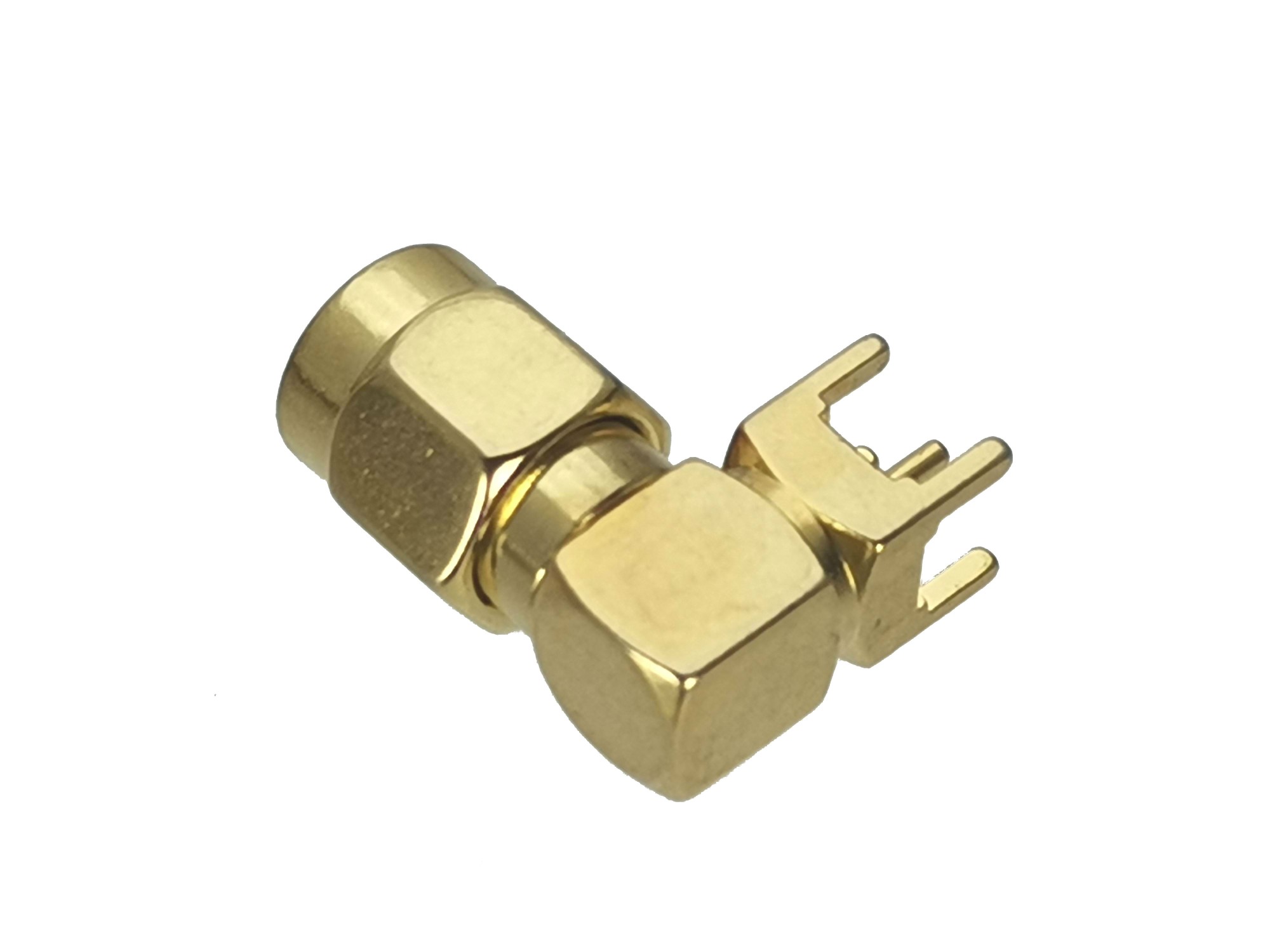

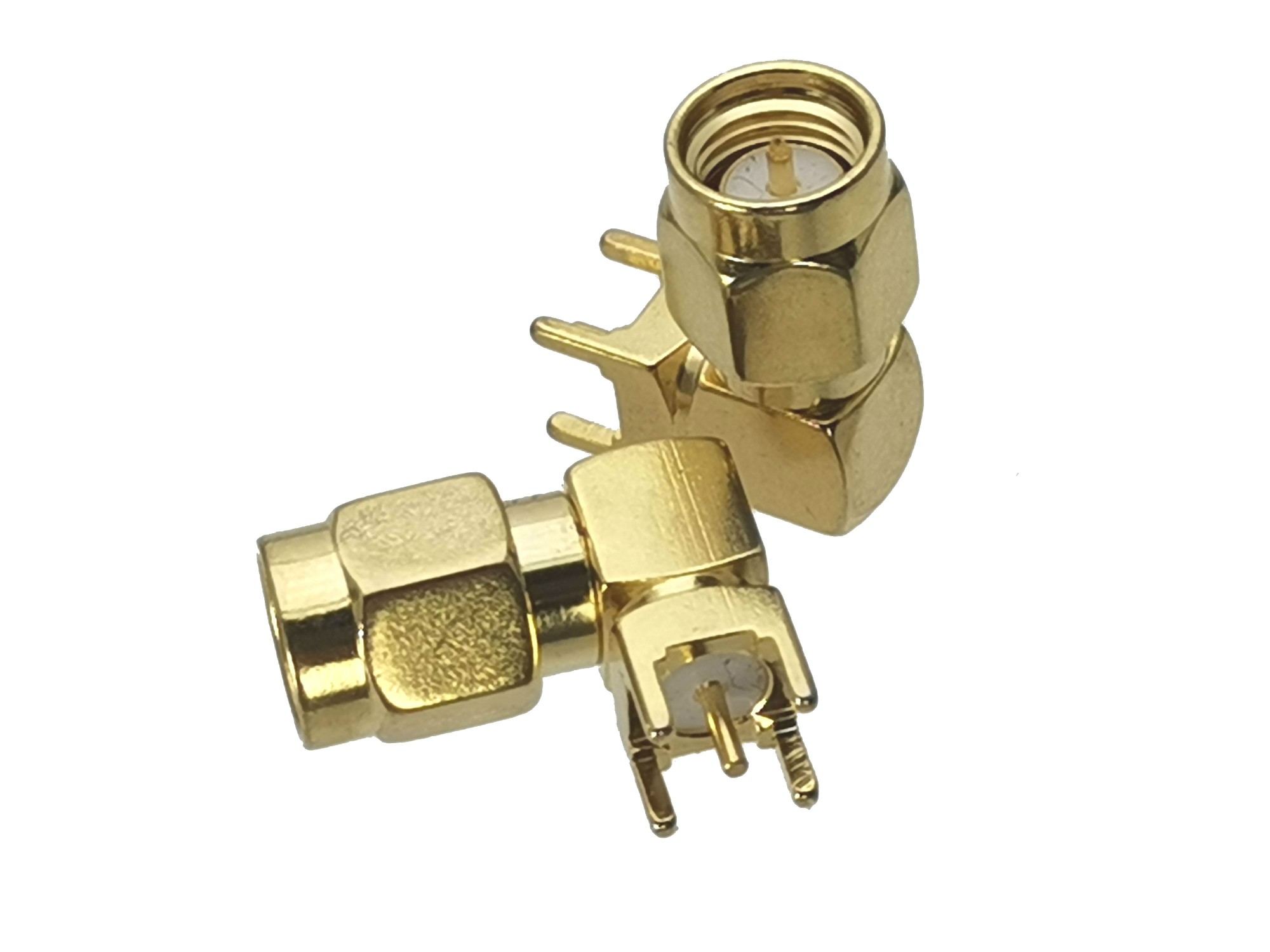

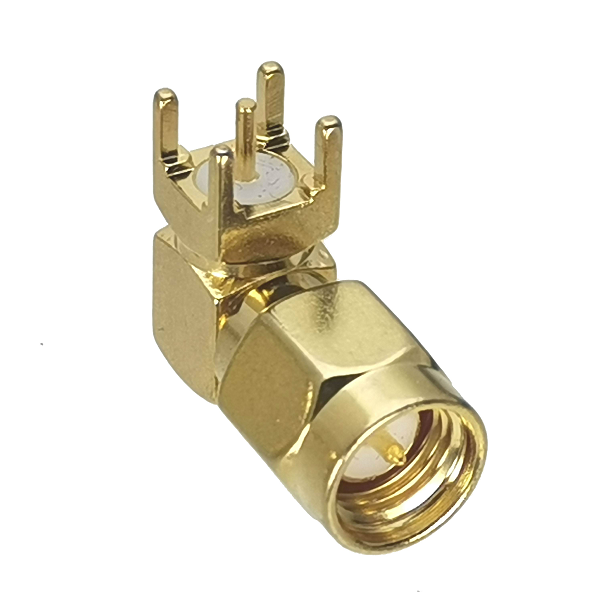

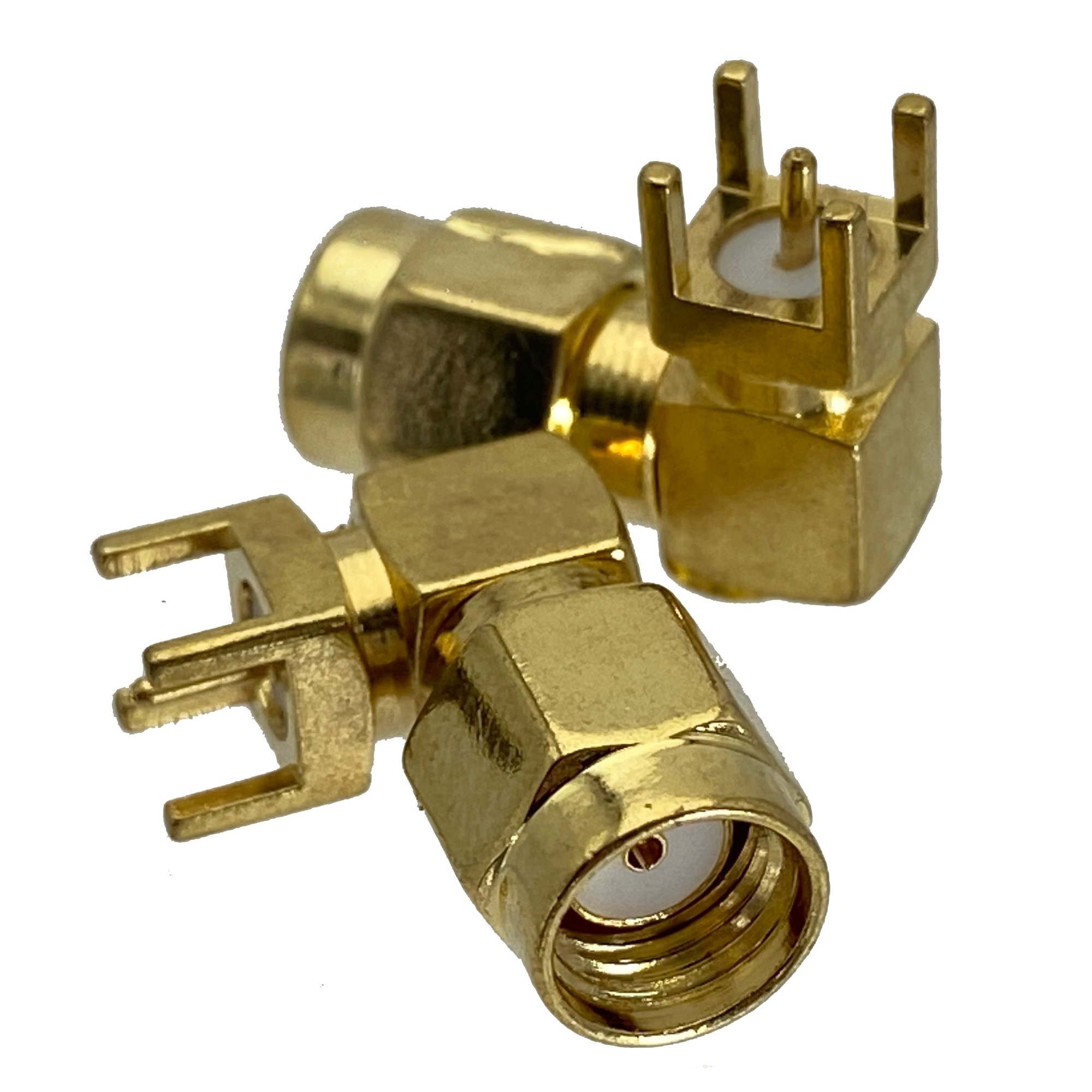

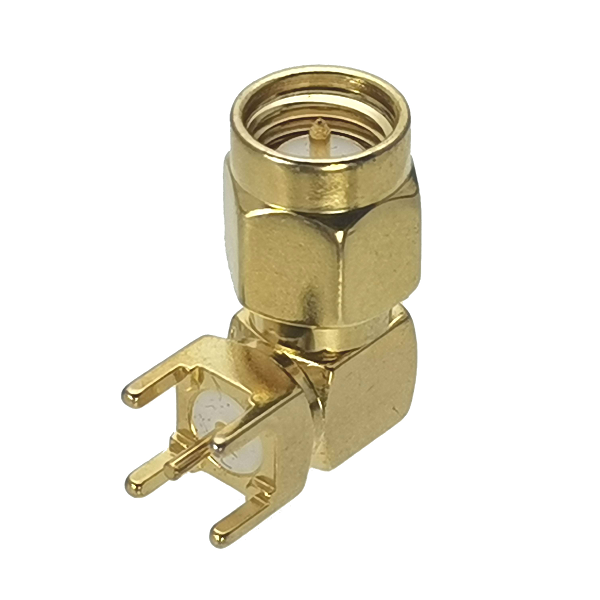

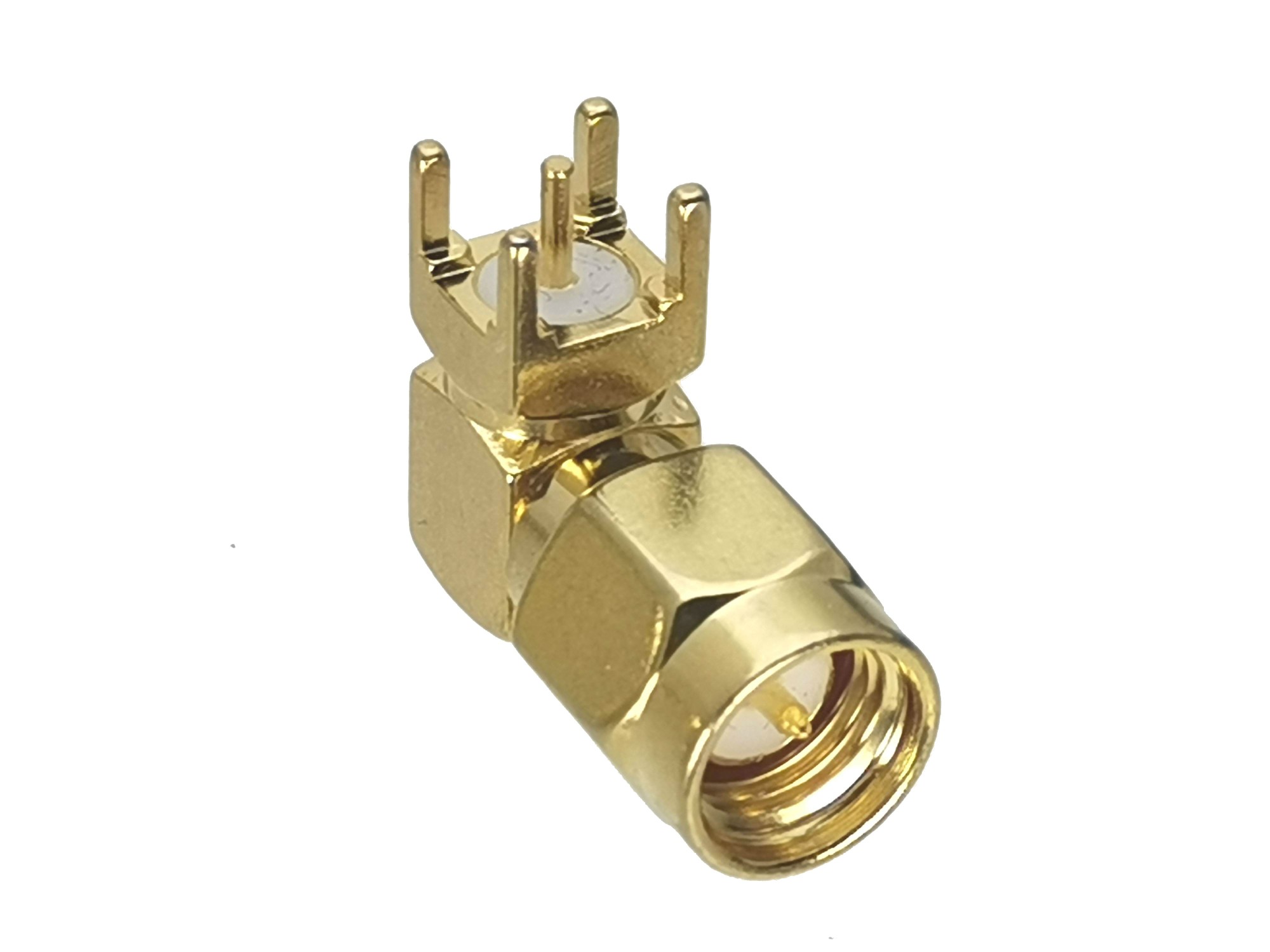

Brass Plated Right Angle SMA Male Edge Mount RF Coaxial Connector SMA Female PCB Mount Connector

Brass Plated Right Angle SMA Male Edge Mount RF Coaxial Connector SMA Female PCB Mount Connector

A. Electrical Characteristics
Frequency: <= 12 GHz
Impedance: 50 Ohm
S.W.R.: <= 1.3
Insertion Loss: <= 0.1 dB / GHz
Voltage (breakdown): > 500V
Insulation Resistance: >= 500 M ohm
Center Conductor Contact Resistance: <= 25 m ohm
Outer Conductor Contact Resistance: <= 15 m ohm

B. Material & Mechanical Characteristics
Material of Conductor: Brass (Cu)
Pull Test (Retention): >= 27 Kg (270N) for Screw Type
Pull-Engagement Force: <= 2.7 Kg (27N) for Plug Type
Pull-Separation Force: 1~2 Kg (10 ~ 20 N) for Plug Type
Mating Cycles: > 500

C. Environmental
Operation Temperature: - 40 °C ~ + 65 °C
Storage Temperature: - 40 °C ~ + 80 °C
