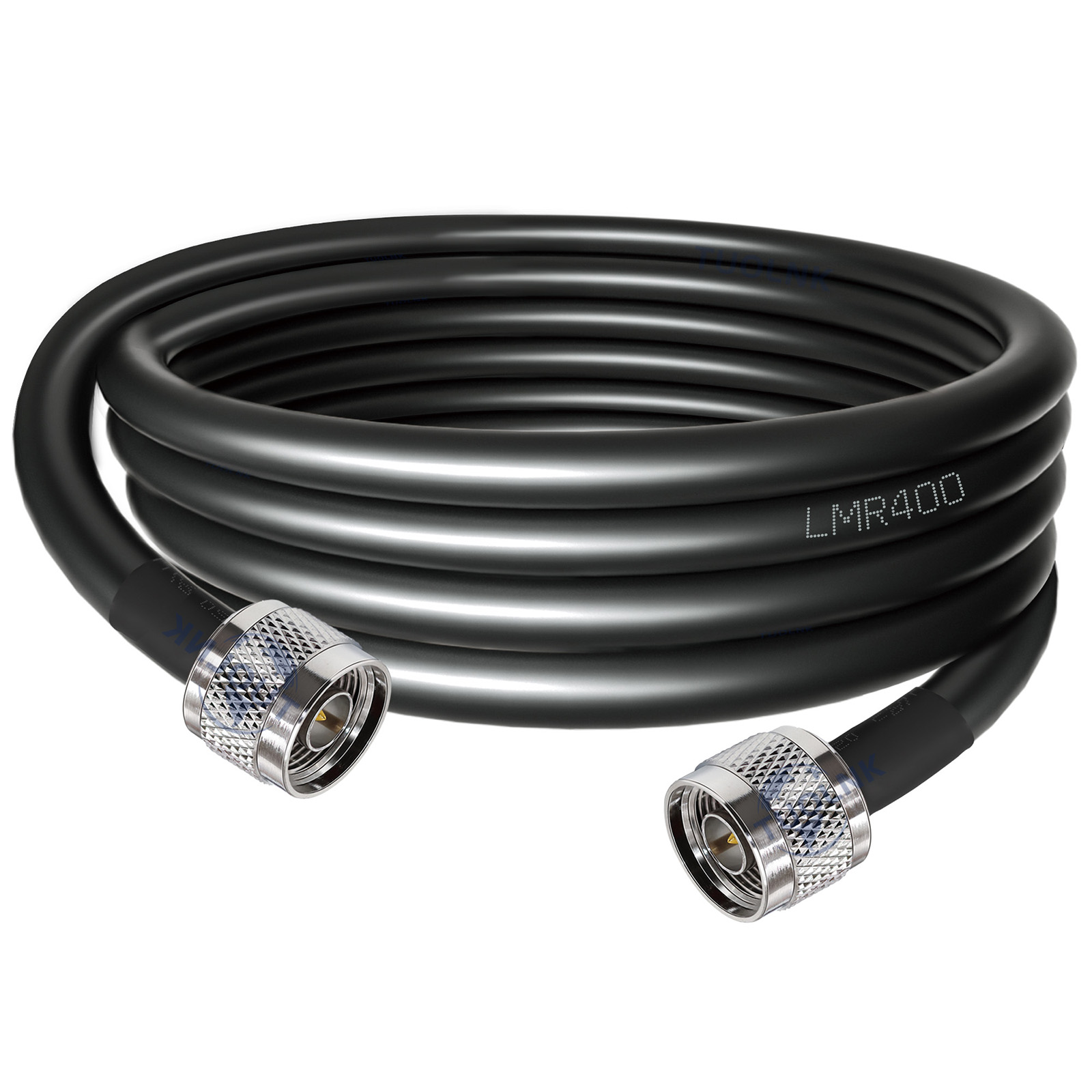

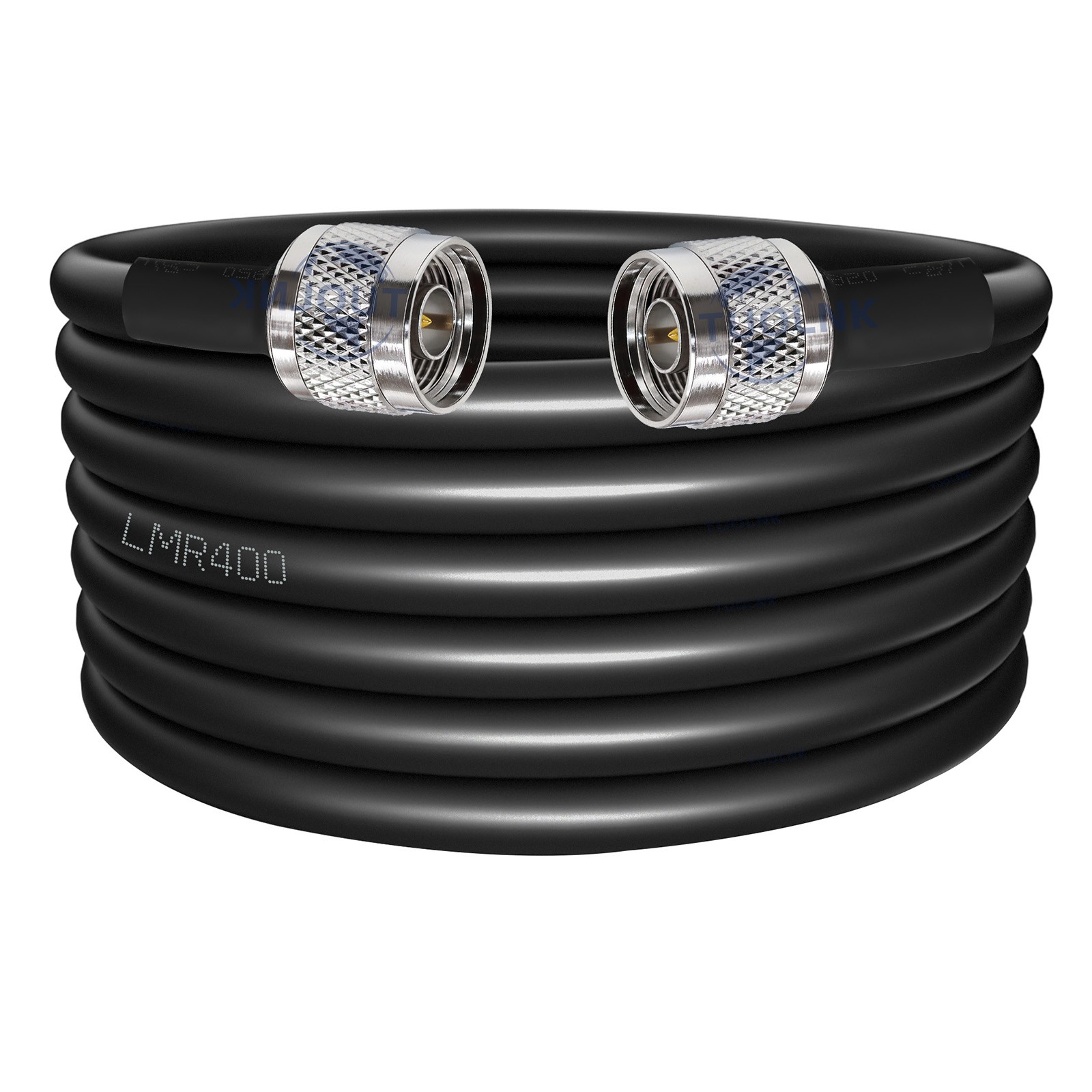

N Type Male to Male LMR400 Jumper Pigtail Radio WIFI Coaxial Cable for 4G LTE Cellular Amplifier Cell Phone Signal Booster

N Type Male to Male LMR400 Jumper Pigtail Radio WIFI Coaxial Cable for 4G LTE Cellular Amplifier Cell Phone Signal Booster

Specifications of  N to N RF Coaxial Cable
Connector 1: N Male/Female Plug ( Nickel Plated)(Depends on need)
Connector 2: N Male /Female ( Nickel Plated)(Depends on need)

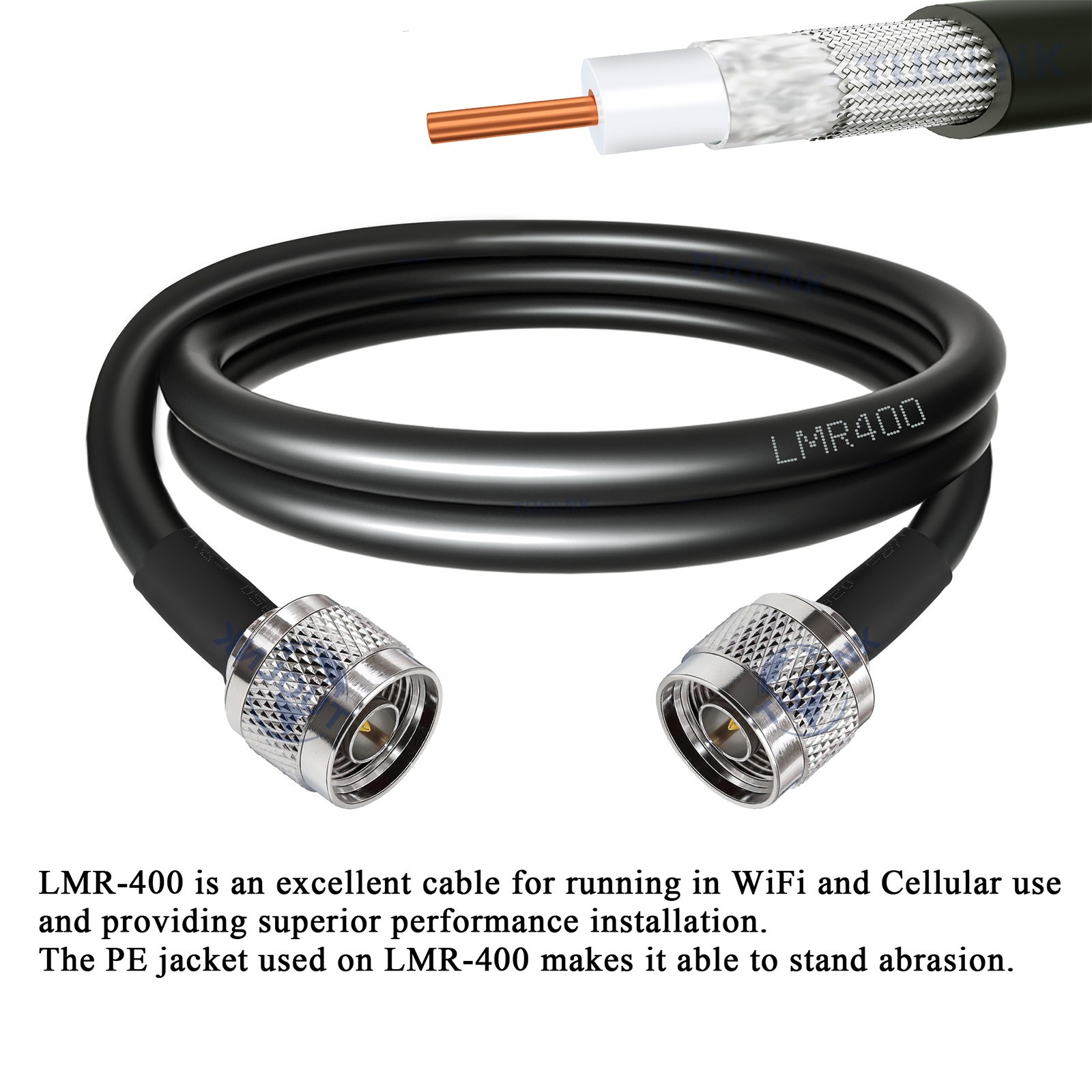

Cable Type: LMR400 50-7 Low Loss RF Coaxial Cable
Cable length: Based on your need.
Inner Conductor: Copper Clad Aluminum
Dielectric: Foam PE
Outer Conductor: Dual Al Foil
Braid: Aluminum magnesium alloy braiding
Jacket: PE
Impedance: 50 ohm, Low-loss
Volecity of propagation (10%): 82%
Capacitance (pf/m): 79±2PF/M
Peak Power:1.6KW
Jacket spark(V.RMS):3000V
VSWR (5~3000MHz):＜1.30

➣Cable Type & Details: LMR400 coaxial cable; Cable type: LMR400; Conductor Material: pure copper; Impedance: 50 ohm, Low-loss

➣Durability& Performance:The conductor is made of pure brass to ensure it's durability and recycling usage.

The cable type is LMR400 to ensure good conductivity and signal transmission,with highly resistant to signal interference.

➣Application:This coaxial cable is widely used in Routers and Antennas from Cisco, Cradlepoint, Digi, MoFi, Pepwave, Proxicast, Sierra Wireless and many others.

Length:
164ft(50cm)
3.3ft (1M)
6.6ft (2M)
9.8ft (3M)
13.2ft (4M)
16.4ft (5M)
26.3ft(8M)
32.8ft(10M)
49.2ft (15M)
65.6ft (20M)
82ft (25M)
98.4ft (30M)
