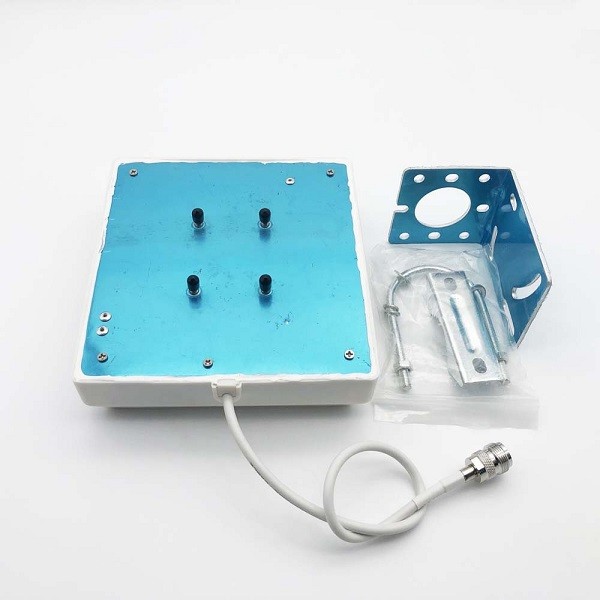

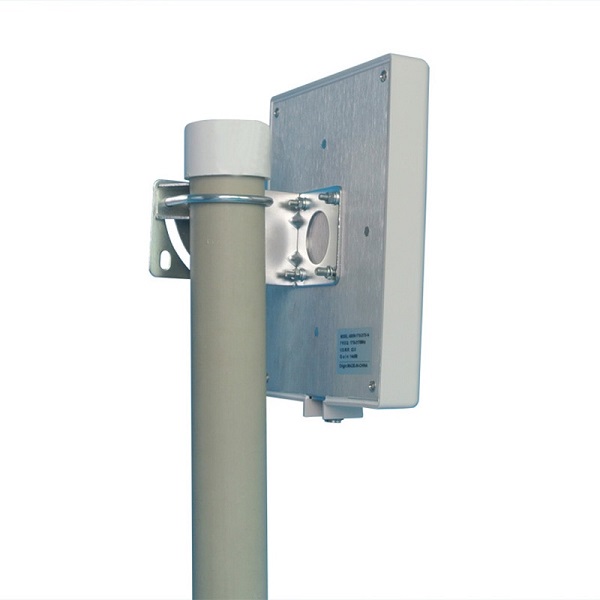

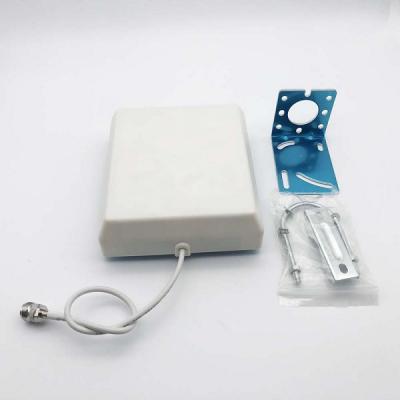

5150-5850MHz Wall Mount Directional Panel Antenna

5150-5850MHz Wall Mount Directional Panel Antenna

Electrical Specifications

Frequency range: 5150-5850MHz

Bandwidth: 700MHz
Gain: 18 dBi
Half-power beam width: H：20  V：20
VSWR: ≤2
Input Impedance: 50Ohm
Polarization: Vertical
Maximum input power: 100W
Lightning protection: DC Ground
Input connector type: N Female

Mechanical Specifications

Dimensions (Height/Width/Depth): 225*195*47mm
Antenna weight: 0.8kg
Operating temperature: -40～60°c
Rated Wind Velocity: 60m/s
Radome material: ABS
Radome color: white

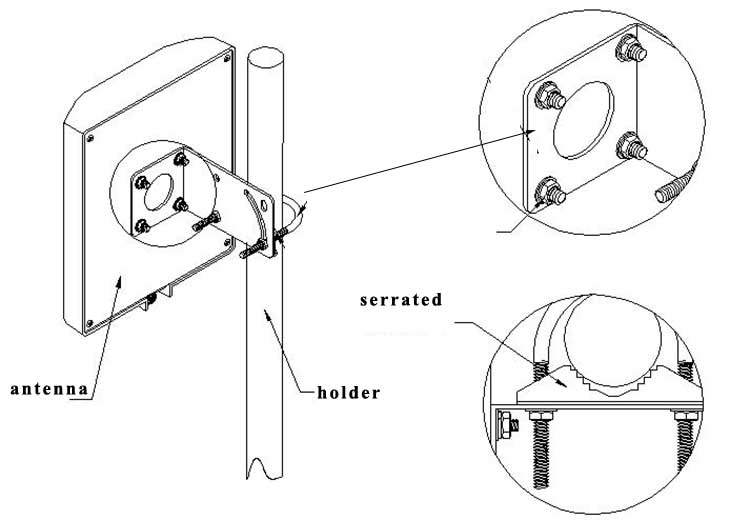

Mounting hardware: ￠35～￠50mm
