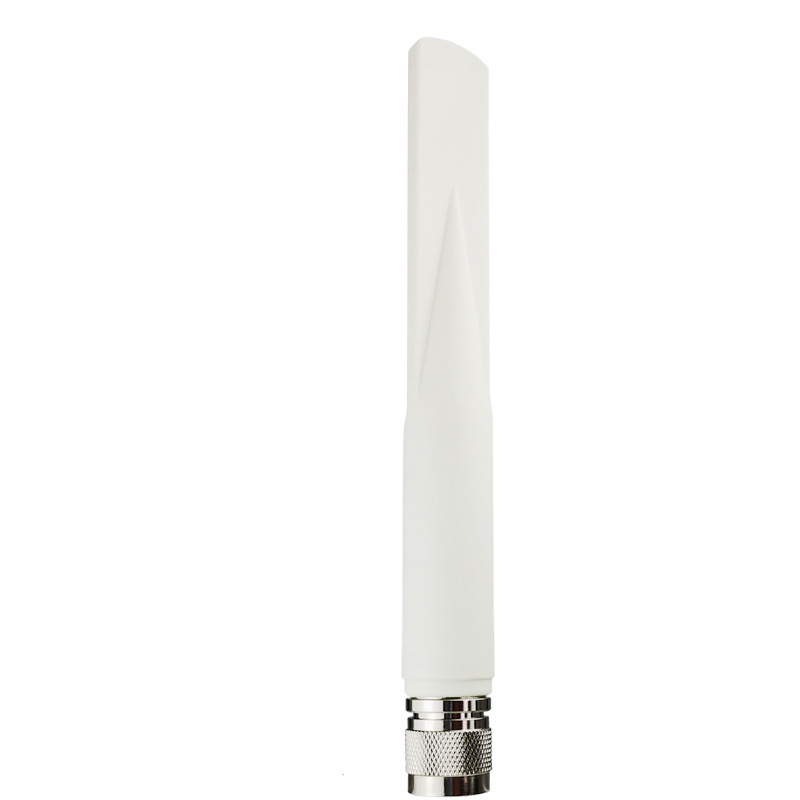

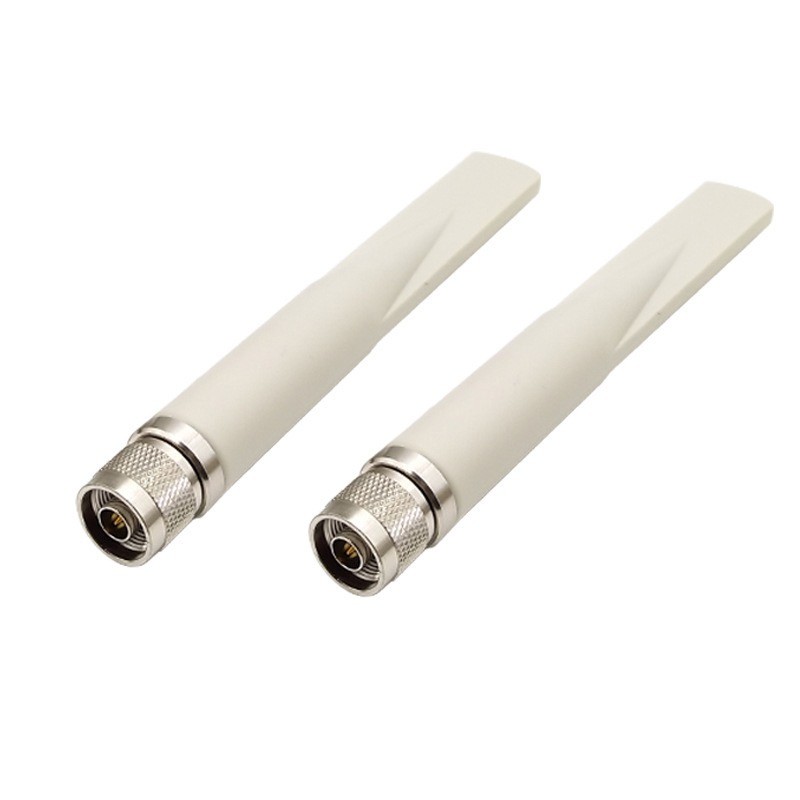

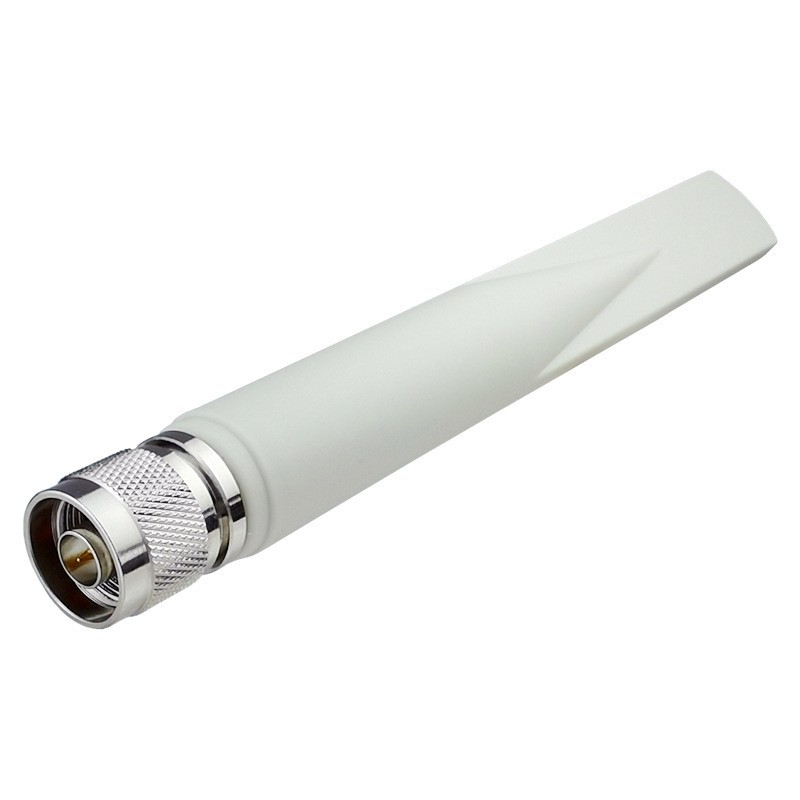

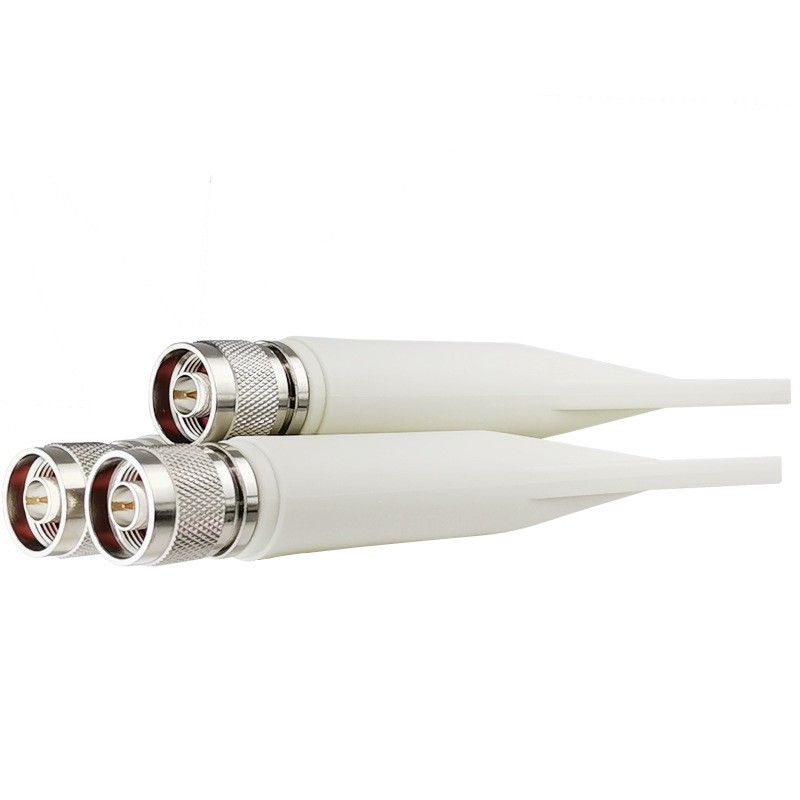

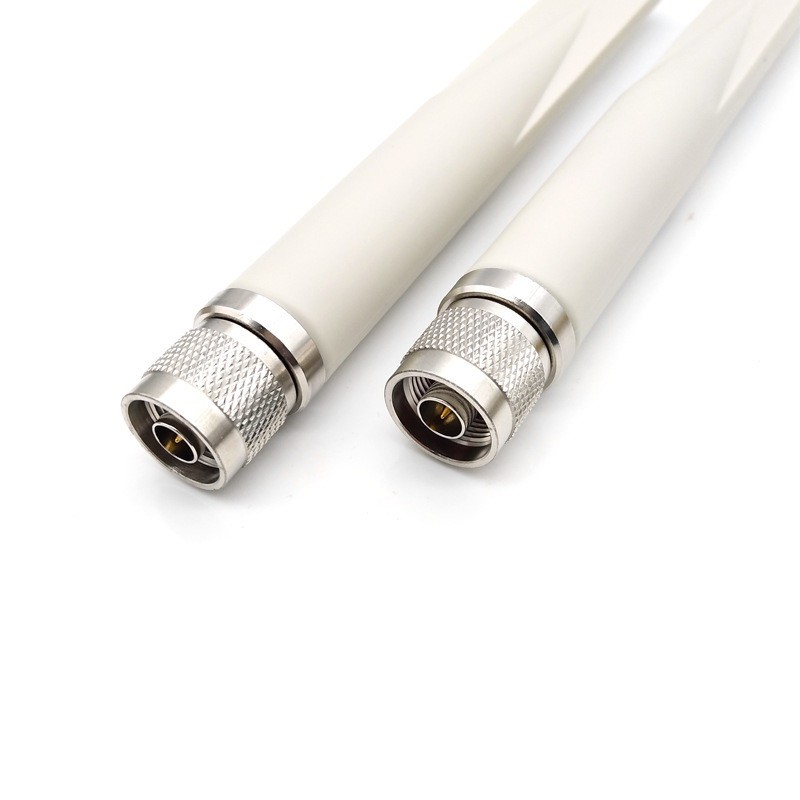

N male external 4G LTE antenna High Gain Waterproof Antenna

A. Electrical Characteristics

Frequency

698-960/1710-2690 MHz

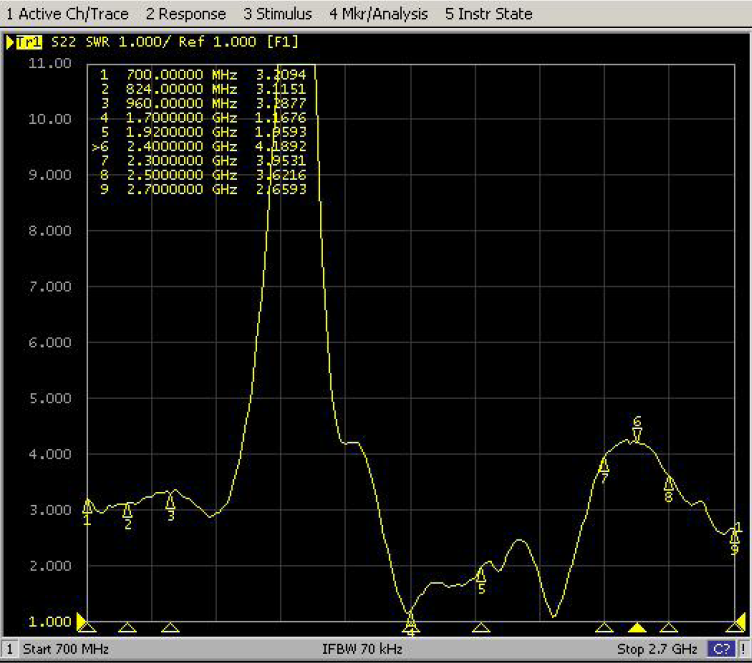

S.W.R.

<= 3.0

Peak Gain

8 dBi

Polarization

Vertical

Impedance

50 Ohm

Maximum power

10W

Vertical lobe Angle (E)

45~60°

Water plane lobe Angle (H)

360°

B. Mechanical Specifications

Connector Type

N male

Cable Type

/

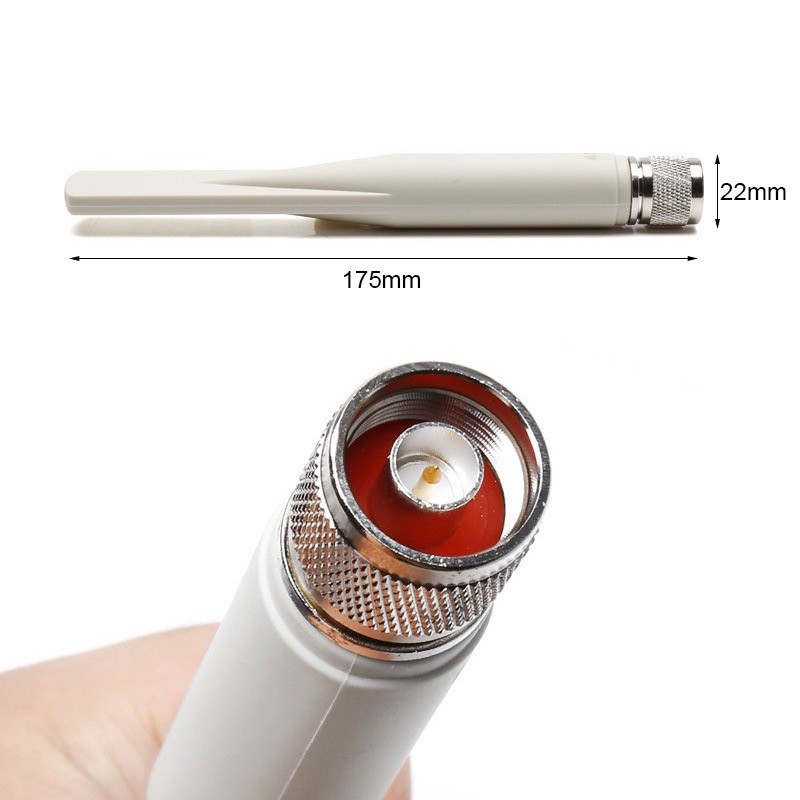

Antenna Size

175*22mm

C. Environmental

Operation Temperature

- 40 ˚C ~ + 65 ˚C

Storage Temperature

- 40 ˚C ~ + 80 ˚C
