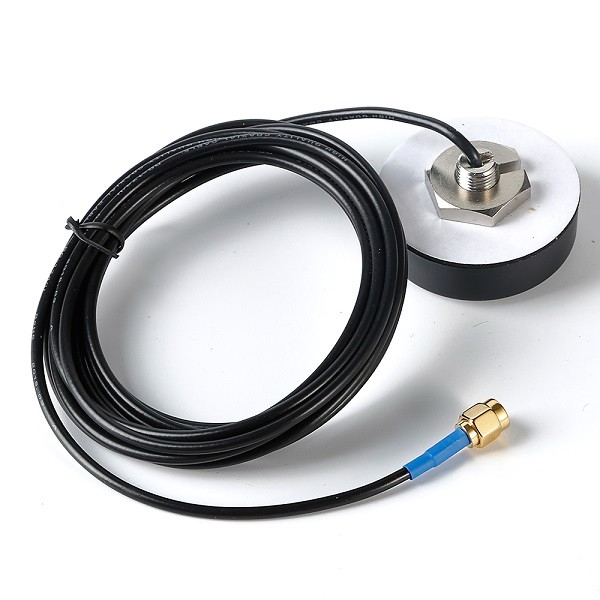

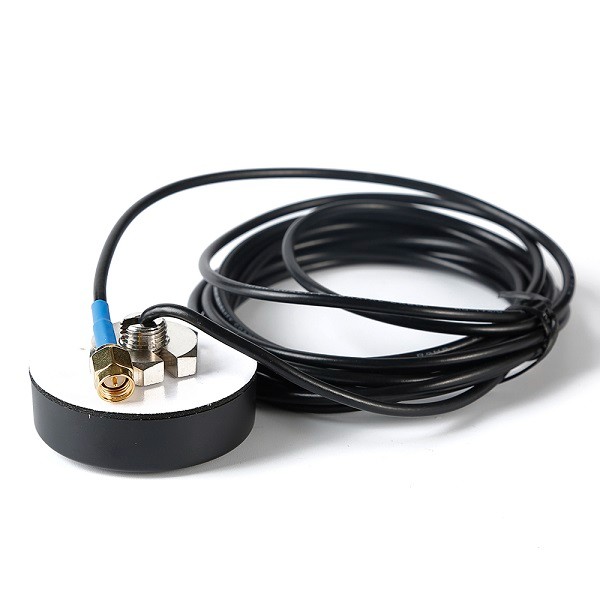

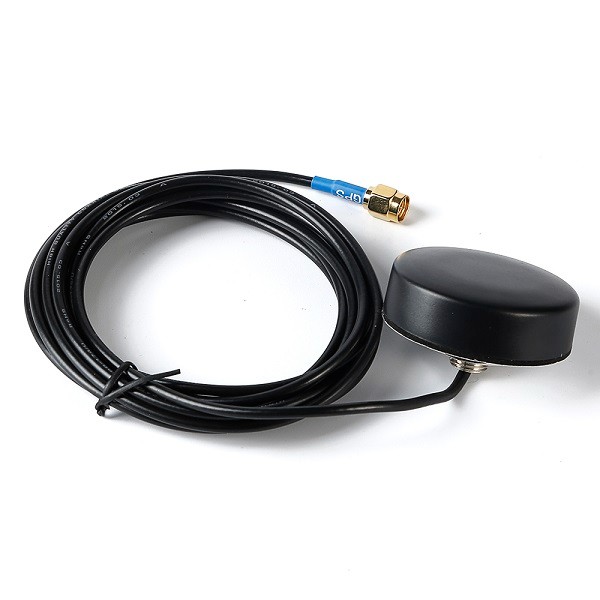

GPS Screw Mount Puck Antenna with SMA male connector
Specifications
Center Frequency L1:1575.42±2MHz
B2:1561.098±2MHz
Band Width CF±5MHz
Polarization RHCP
Gain 3dBic(Zenith)
V.S.W.R <1.5
Impendance 50Ω
Dimension 18*18*4mm
LNA Gain 18±2dB
Noise Figure <2
Ex-band Attenuation 35dB@CF±50MHz/50dB@CF±100MHz
Supply Voltage 2.7~5V DC
Current Consumption 5~12mA
V.S.W.R <2.0(min)
Mechanical:
Cable RG174
Connector SMA male
Environmental:
Operating Temperature -40℃~+85℃
Relative Humidity Up to 75%
Vibration 10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly ROHS Compliant
