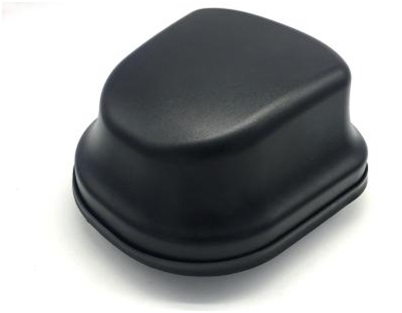

7 in 1 antenna MIMO 5G *4 + MIMO WIFI *2 + GPS / GNSS
- Product Item:E-7 in 1-1
- Category:Combo Antenna
- Frequency: WIFI / 5G / GPS / GNSS
- Gain: 4dBi / LNA gain: 40dBi
- Dimension: 190*85mm
- Waterproof: IP67
7 in 1 antenna MIMO 5G *4 + MIMO WIFI *2 + GPS / GNSS
Specification:
|
Item |
Specifications |
|
|
GNSS Antenna |
Frequency |
GPSL1/L2/L5 GLONASSG1/G2/G3 COMPASSB1/B2/B3 GalileoE1/L1/E2/E5a/E5b/E6 |
|
Polarization |
RHCP |
|
|
LNA Gain |
40±2dB |
|
|
Noise Figure |
≤2.0dB |
|
|
Supply Voltage |
3~12VDC |
|
|
Current Consumption |
≤60mA |
|
|
V.S.W.R |
＜2.0 |
|
|
Impedance |
50Ω |
|
|
5G NR Antenna MIMO*4 |
Frequency Range |
698~960MHz/1710~2690MHz/2900~3800MHz |
|
V.S.W.R |
＜3.0 |
|
|
Polarization |
Linear |
|
|
Gain |
4dBi（Typ.） |
|
|
Impedance |
50Ω |
|
|
WIFI Antenna MIMO*2 |
Frequency Range |
2400~2483.5MHz/4900~5925MHz |
|
V.S.W.R |
＜2.5 |
|
|
Polarization |
Linear |
|
|
Gain |
4dBi（Typ.） |
|
|
Impedance |
50Ω |
|
|

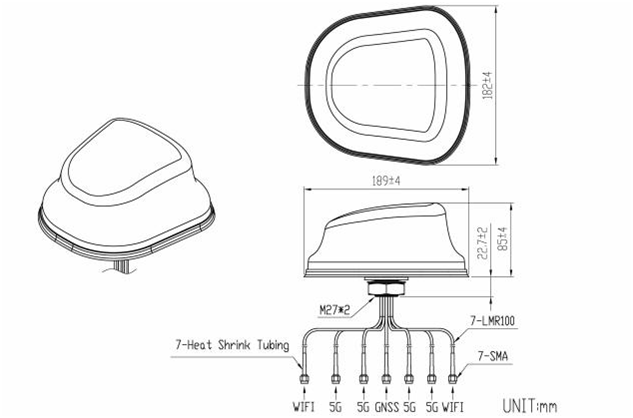

Mechanical |
Cable |
LMR100*7 |
|
Connector |
SMA or others |
|
|
Material |
PC/ABS |
|
|
Mounting Method |
Screw |
|
|
Environmental |
Operating Temperature |
-40℃~+85℃ |
|
Relative Humidity |
Upto95% |
|
|
Ingress Protection |
IP67 (excludecableoutlet) |
|
