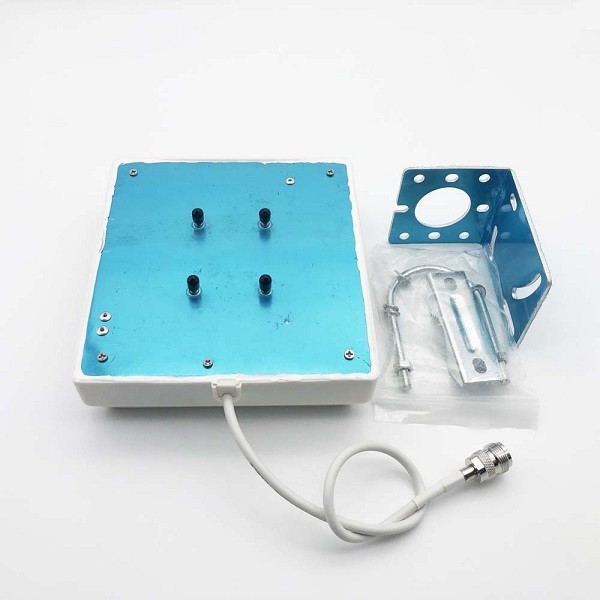

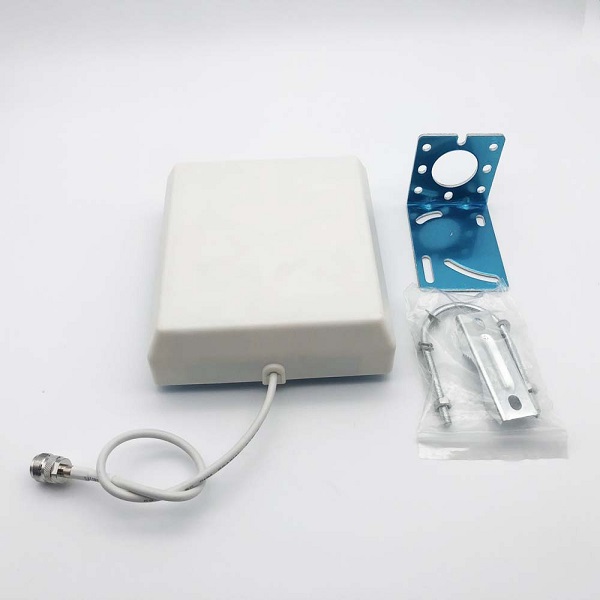

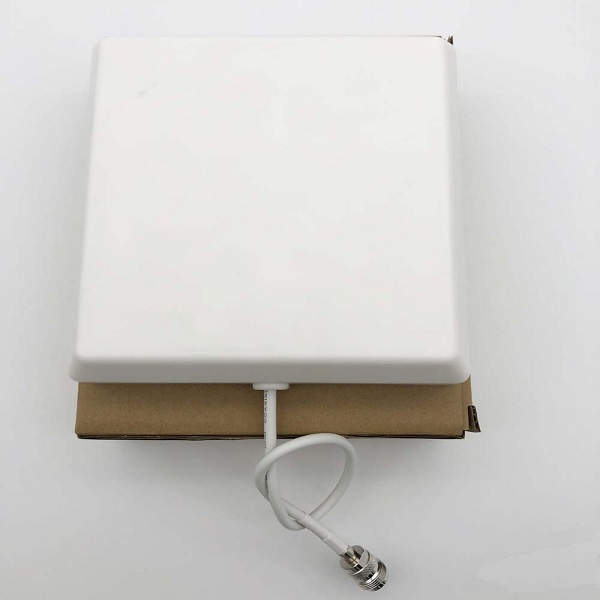

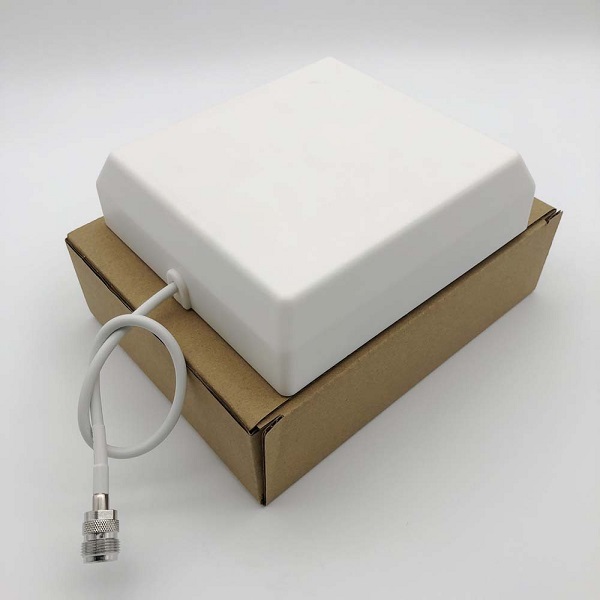

2.4G 5.8G Dual band Outdoor High Gain Directional Patch Panel Antenna

2.4G 5.8G Dual band Outdoor High Gain Directional Patch Panel Antenna

Electrical Specifications

Frequency range: 2400-2500MHz&5150 ~ 5850MHz

Gain: 7/9 dBi
Half-power beam width: H：20  V：20
VSWR: ≤2
Input Impedance: 50Ohm
Polarization: Vertical
Maximum input power: 100W
Lightning protection: DC Ground
Input connector type: N Female

Mechanical Specifications

Dimensions (Height/Width/Depth): 165*155*44mm
Antenna weight: 0.7kg
Operating temperature: -40～60°c
Rated Wind Velocity: 60m/s
Radome material: ABS
Radome color: white
Mounting hardware: ￠35～￠50mm
